Texas Instruments Part #INA220BQDGSRQ1

The INA220BQDGSRQ1 is indeed an integrated circuit (IC). Specifically, it is a current sense amplifier manufactured by Texas Instruments. Let’s explore its key specifications:

• Number of Channels: 1 channel
• GBP (Gain Bandwidth Product): 11 kHz
• Common Mode Voltage (Vcm): 12 V
• CMRR (Common Mode Rejection Ratio): 120 dB
• Input Bias Current (Ib): 20 μA
• Input Offset Voltage (Vos): 50 μV
• Supply Voltage Range: 3 V to 5.5 V
• Operating Supply Current: 1 mA
• Gain Error: 0.2%
• Operating Temperature Range: -40°C to +125°C

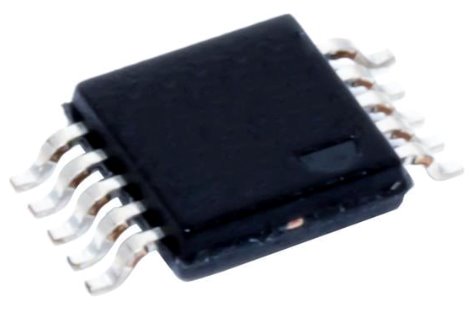

• Package/Case: MSOP-10
• Qualification: AEC-Q100
• Features: Bi-directional, Low-side Capable, Programmable Gain
• Factory Pack Quantity: 2500 units

The INA220BQDGSRQ1 is commonly used for current and power monitoring applications. Its compact size, programmable gain, and reliable performance make it valuable in various electronic designs.
