Texas Instruments Part #TLC5925IDBQR

The TLC5925IDBQR is an LED driver IC manufactured by Texas Instruments. Let’s explore its key specifications:

• Type: Linear LED driver
• Topology: Shift register
• Number of Outputs: 16
• Voltage Supply Range: 3V to 5.5V
• Maximum Output Voltage: 17V
• Current Output per Channel: 45mA
• Frequency: 30MHz
• Applications: Signage and LED displays
• Operating Temperature Range: -40°C to 125°C

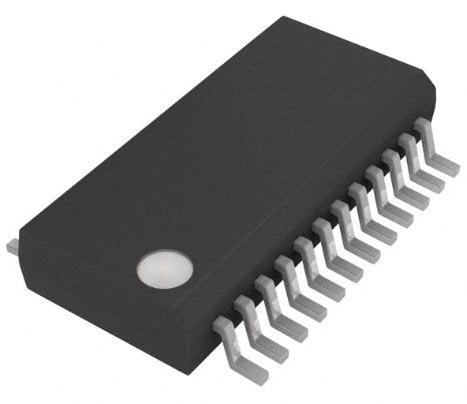

• Package/Case: 24-SSOP (0.154", 3.90mm Width)
• Datasheet: TLC5925IDBQR Datasheet

The TLC5925IDBQR is designed for driving LEDs in various applications. Its constant-current sink design ensures uniform brightness across multiple LEDs. Whether you’re working on display panels or other LED-related projects, this IC provides flexibility and reliable performance.
