ANALOG DEVICES

Analog Devices Isolated Sigma Delta ADC's Part #ADE7913ARIZ-RL | Inverters | DEX

Analog Devices Isolated Sigma Delta ADC's Part #ADE7913ARIZ-RL | Inverters | DEX

Regular price
$14.95 USD
Regular price Sale price $14.95 USD
Sale Sold out
Shipping calculated at checkout.

Analog Devices Isolated Sigma Delta ADC's Part #ADE7913ARIZ-RL

Analog Devices Isolated, Sigma Delta ADCs are designed for a variety of applications. The ADE7912 features two 24-bit ADCs, and the ADE7913 features three ADCs. The ADE7913 includes three channels: one current and two voltage channels. The ADE7912 has one voltage channel but is otherwise identical to the ADE7913.



Features:

  • Isolated DC-to-DC converter
  • On-chip temperature sensor mixed with second voltage channel
  • 4-wire SPI serial interface
  • Up to 4 ADE7912/ADE7913 devices clocked from a single crystal or an external clock
  • Synchronization of multiple ADE7912/ADE7913 devices
  • 400Vrms IEC 61010-1

Specifications:

  • Single 3.3V supply
  • ±31.25mV peak input range for current channel
  • ±500mV peak input range for voltage channels

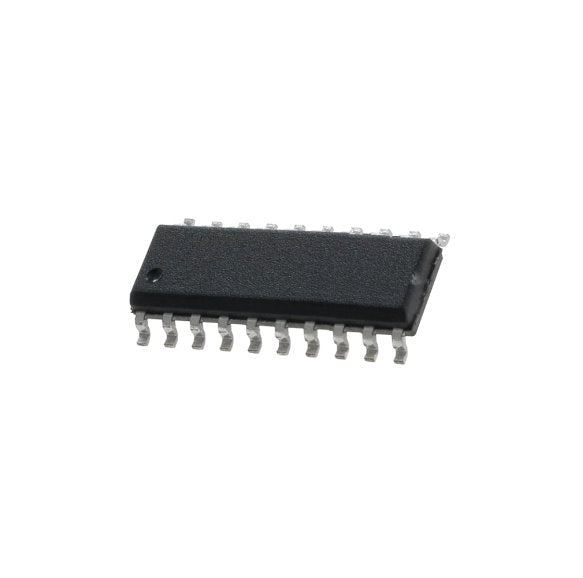

  • 20-lead, wide-body SOIC package with increased 8.3mm clearance and creepage

Applications:

  • Power quality monitoring
  • Solar inverters
  • Process monitoring
View full details
