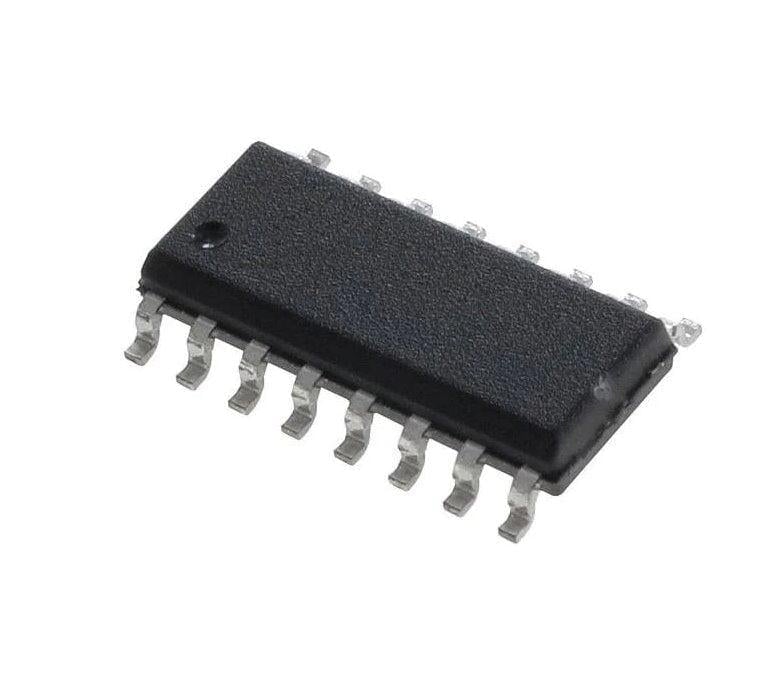

C, CLOCK SYNTHESIZER, PECL, 50MHz TO 200MHz, SOIC16, RoHS

C, CLOCK SYNTHESIZER, PECL, 50MHz TO 200MHz, SOIC16, RoHS

 The NB4N507A is a precision clock synthesizer which generates a very low jitter differential PECL output clock. It produces a clock output based on an integer multiple of an input reference frequency. The NB4N507A accepts a standard fundamental mode crystal, using Phase-Locked-Loop (PLL) techniques, will produce output clocks up to 200 MHz. In addition, the PLL circuitry will produce a 50% duty cycle square-wave clock output. The NB4N507A can be programmed to generate a selection of input reference frequency multiples. An exact 155.52 MHz output clock can be generated from a 19.44 MHz crystal and the x8 multiplier selection. The NB4N507A is intended for low output jitter clock generation. The PECL outputs are 15 mA open collector and must be DC loaded and AC terminated.

Features

• Input Crystal Frequency of 10 - 27 MHz
• Enable Usage of Common Low-Cost Crystal
• Differential PECL Output Clock Frequencies up to 200 MHz
• Duty Cycle of 48%/52%
• Operating Range: VCC = 3.0 V to 5.5 V
• Ideal for SONET Applications and Oscillator Manufacturers
