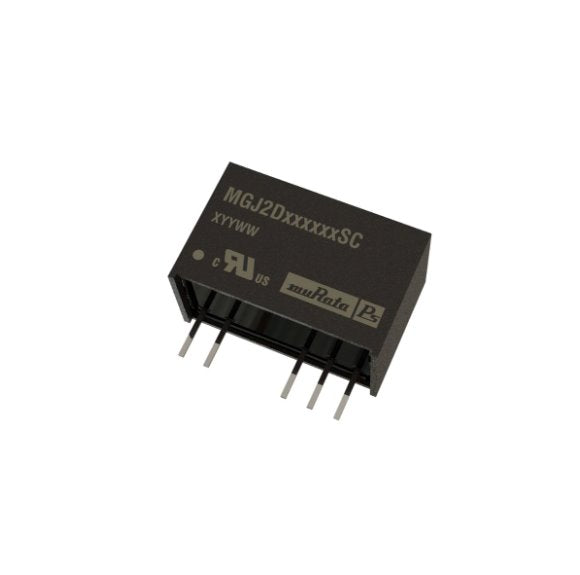

Murata Isolated 2W Gate Drive DC-DC Converters Part #MGJ2D151515SC

Murata MGJ2 Isolated 2W Gate Drive DC-DC Converters feature ultra-low isolation capacitance in a surface-mount package style. The MGJ2 series is characterized for high isolation requirements commonly seen in bridge circuits used in motor drives and inverters.

Features:

• Optimized bipolar output voltages for IGBT/SiC and MOSFET gate drives

• 5V, 12V, and 15V inputs
• +15V/-9V, +15V/-5V, and +20V/-5V outputs
• Operation up to 100°C (with derating)
• Short circuit protection

Applications:

• Industrial Equipment
• Motor drives/motion control
• Inverters (solar, wind, etc.)
• High power AC-DC PSUs
• EVs/HEVs
• CNC machines (milling, drilling, etc.)

• Medical Equipment
• Imaging (X-ray, CT, MRI)
• Ultrasound
