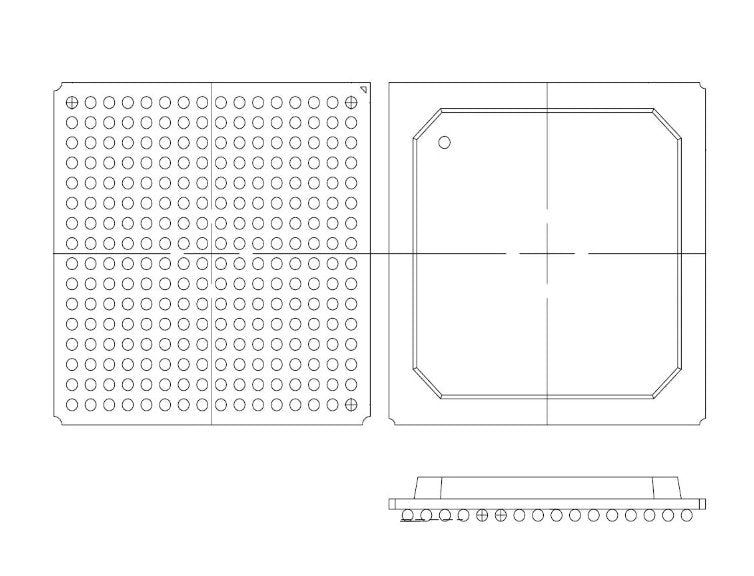

Xilinx Field Programmable Gate Array - FPGA - part # XC3S400-5FG320C
Xilinx Field Programmable Gate Array - FPGA - part # XC3S400-5FG320C
Xilinx Field Programmable Gate Array - FPGA - part # XC3S400-5FG320C
Features
Low-cost, high-performance logic solution for high-volume, consumer-oriented applications
• Densities up to 74,880 logic cells
• SelectIO™ interface signaling
• Up to 633 I/O pins • 622+ Mb/s data transfer rate per I/O
• 18 single-ended signal standards
• 8 differential I/O standards including LVDS, RSDS
• Termination by Digitally Controlled Impedance
• Signal swing ranging from 1.14V to 3.465V
• Double Data Rate (DDR) support
• DDR, DDR2 SDRAM support up to 333 Mb/s
• Logic resources
• Abundant logic cells with shift register capability
• Wide, fast multiplexers • Fast look-ahead carry logic
• Dedicated 18 x 18 multipliers
• JTAG logic compatible with IEEE 1149.1/1532
• SelectRAM™ hierarchical memory
• Up to 1,872 Kbits of total block RAM
• Up to 520 Kbits of total distributed RAM
• Digital Clock Manager (up to four DCMs)
• Clock skew elimination
• Frequency synthesis
• High resolution phase shifting
• Eight global clock lines and abundant routing
XC3S400-5FG320C
XLX:XC3S400-5FG320C
