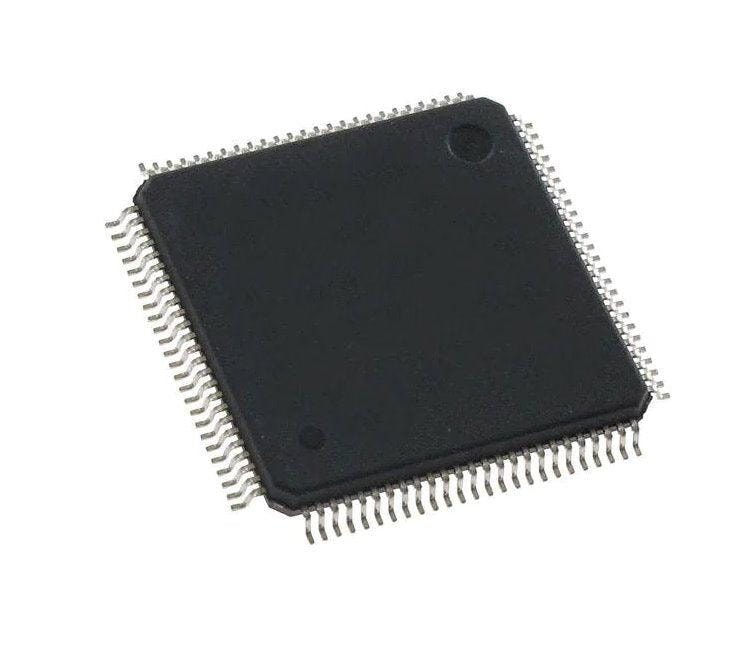

Xilinx Field Programmable Gate Array - FPGA - part # XC3S200-4VQG100C

The Xilinx XC3S200-4VQG100C Spartan 3 family of Field-Programmable Gate Arrays is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The eight-member family offers densities ranging from 50,000 to 5,000,000 system gates


Features
• Low-cost, high-performance logic solution for high-volume,
consumer-oriented applications
• Densities up to 74,880 logic cells
• SelectIO™ interface signaling
• Up to 633 I/O pins
• 622+ Mb/s data transfer rate per I/O
• 18 single-ended signal standards
• 8 differential I/O standards including LVDS, RSDS
• Termination by Digitally Controlled Impedance
• Signal swing ranging from 1.14V to 3.465V
• Double Data Rate (DDR) support
• DDR, DDR2 SDRAM support up to 333 Mb/s
• Logic resources
• Abundant logic cells with shift register capability
• Wide, fast multiplexers
• Fast look-ahead carry logic
• Dedicated 18 x 18 multipliers
• JTAG logic compatible with IEEE 1149.1/1532
• SelectRAM™ hierarchical memory
• Up to 1,872 Kbits of total block RAM
• Up to 520 Kbits of total distributed RAM
• Digital Clock Manager (up to four DCMs)
• Clock skew elimination
• Frequency synthesis
• High resolution phase shifting

XLX:XC3S200-4VQG100C

XC3S200-4VQG100C
