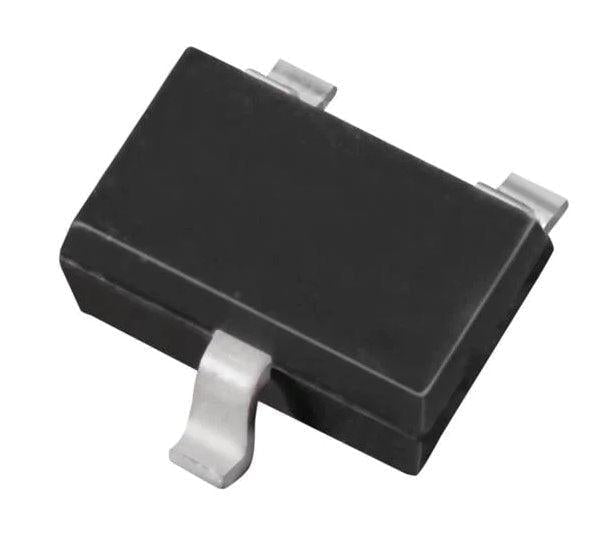

Diodes Incorporated SURFACE MOUNT SCHOTTKY BARRIER DIODE, Part #: BAS70W-05-7-F | DEX

Diodes Incorporated SURFACE MOUNT SCHOTTKY BARRIER DIODE, Part #: BAS70W-05-7-F | DEX features: • Low Turn-on Voltage • Fast Switching • PN Junction Guard Ring for Transient and ESD Protection • Ultra-Small Surface Mount Package • Lead Free/RoHS Compliant • "Green" Device

Mechanical Data:

• Case: SOT-323 • Case Material: Molded Plastic, "Green" Molding Compound, Note 5. UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020D • Terminals: Solderable per MIL-STD-202, Method 208 • Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). • Polarity: See Diagrams Below • Marking Information • Ordering Information • Weight: 0.006 grams (approximate)

DOI:BAS70W-05-7-F

BAS70W-05-7-F
