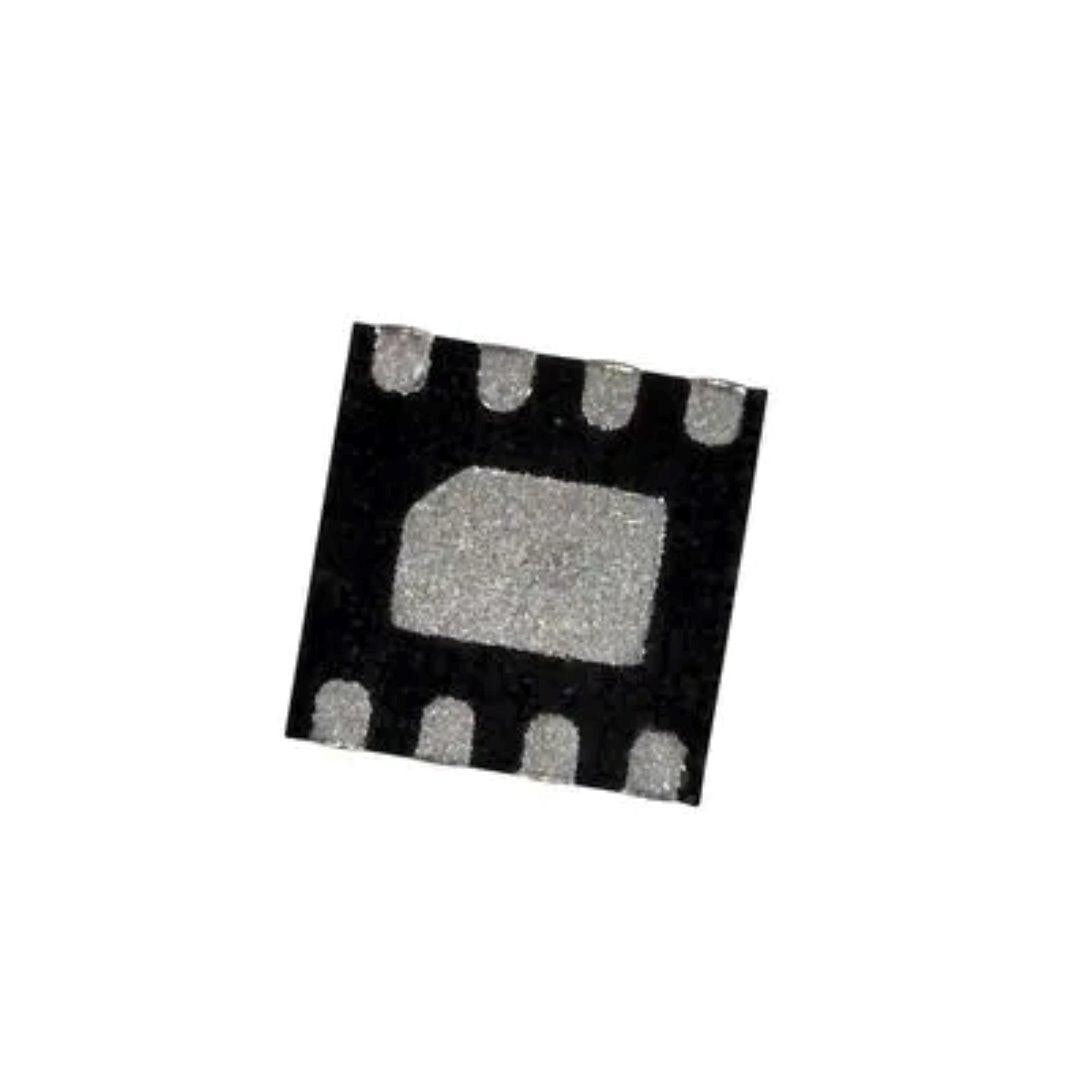

Onsemi 2.5 V / 3.3 V / 5.0 V 1:4 Clock Fanout Buffer Part #NB3L553MNR4G | Fanout | DEX

The NB3L553 is a low skew 1−to 4 clock fanout buffer, designed for clock distribution in mind. The NB3L553 specifically guarantees low output−to−output skew. Optimal design, layout and processing minimize skew within a device and from device to device.

Features

• Input/Output Clock Frequency up to 200 MHz

• Low Skew Outputs (35 ps), Typical

• RMS Phase Jitter (12 kHz – 20 MHz): 29 fs (Typical)

• Output goes to Three−State Mode via OE

• Operating Range: VDD = 2.375 V to 5.25 V

• 5 V Tolerant Input Clock ICLK

• Ideal for Networking Clocks

• Packaged in 8−pin SOIC

• Industrial Temperature Range

• These are Pb−Free Devices

ONS:NB3L553MNR4G

NB3L553MNR4G
