ABB FLTR75V05 Filter Module 75 Vdc Input Maximum, 5 A Maximum, Part #FLTR75V05Z | Power Line Filter | DEX

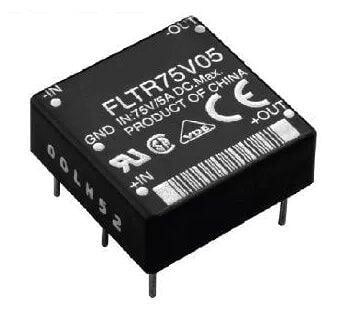

ABB FLTR75V05 Filter Module 75 Vdc Input Maximum, 5 A Maximum, Part #FLTR75V05Z | Power Line Filter | DEX features: • RoHS compliant to Directive 2011/65/EU • Compatible in Pb- free or SnPb reflow environment • Small size: 25.4 mm x 25.4 mm x 10.2 mm (1.0 in. x 1.0 in. x 0.4 in.) • Optimized for use with high-frequency switching dc-to-dc power modules • Printed-circuit board mountable • Operating case temperature range: –40 °C to +100 °C • Choice of pin lengths • Common-mode and differentialmode filtering of power supply dc input and output lines • Distributed power architectures • Telecom • Datacom • CAN/CSA C22.2 No. 60950-1-07 / UL* 60950-1, Second Edition, dated March 27, 2007; VDE 0805 (EN60950) Licensed

The ABB FLTR75V05 Filter Module is an electronic component designed to address noise reduction in high-frequency switching power supplies. Let’s explore its key features and purpose:

Function and Purpose:
The FLTR75V05 is specifically designed to reduce conducted common-mode and differential-mode noise on input or output lines of high-frequency switching power supplies.
It acts as a power line filter, mitigating electromagnetic interference (EMI) generated during power conversion processes.
Specifications:
Voltage Input: Maximum of 75 Vdc.
Maximum Current Rating: 5 A.
RoHS Compliant: The module adheres to the Restriction of Hazardous Substances (RoHS) directive.
Size: Compact dimensions of 25.4 mm x 25.4 mm x 10.2 mm (1.0 in. x 1.0 in. x 0.4 in.).
Mounting: Designed for printed-circuit board (PCB) mounting.
Operating Temperature Range: From 40°C to +100°C.
Noise Reduction:
The FLTR75V05 provides high insertion loss across the frequency range regulated by the U.S. Federal Communications Commission (FCC) and the International Special Committee on Radio Interference (CISPR) for conducted emissions.
By effectively filtering out noise, it helps maintain system performance and compliance with international EMI requirements.
Applications:
Telecom Systems: Used in telecom equipment where high-frequency switching power supplies are prevalent.
Computer Applications: Suitable for computer systems and other devices with low gate charge driving requirements.
Industrial Applications: Can be employed in various industrial systems.

TCN:FLTR75V05Z

FLTR75V05Z
