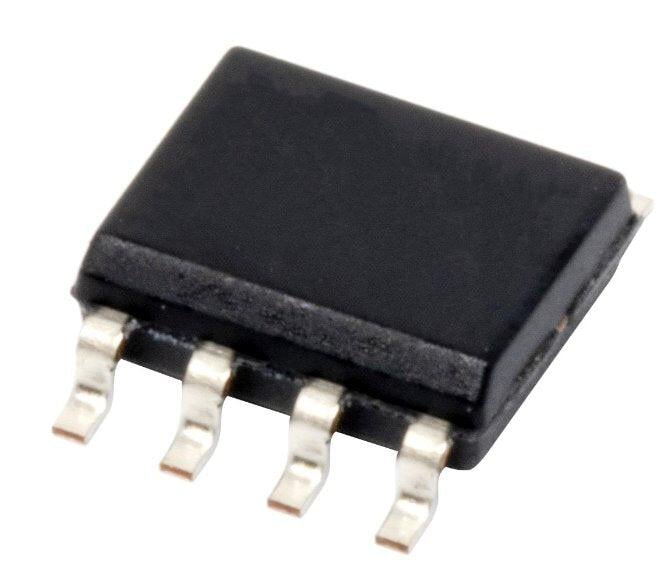

Analog Devices 2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit DACs, Part #AD5541BRZ | Converter | DEX

Analog Devices 2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit DACs, Part #AD5541BRZ | Converter | DEX

Regular price $250.00 USD
Regular price Sale price $250.00 USD
Sale Sold out
Shipping calculated at checkout.

Analog Devices 2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit DACs, Part #AD5541BRZ | Converter | DEX features: Full 16-bit performance 3 V and 5 V single-supply operation Low 0.625 mW power dissipation 1 µs settling time Unbuffered voltage output capable of driving 60 kΩ loads directly SPI-/QSPI-/MICROWIRE-compatible interface standards Power-on reset clears DAC output to 0 V (unipolar mode) 5 kV HBM ESD classification Low glitch: 1.1 nV-sec

Applications: Digital gain and offset adjustment Automatic test equipment Data acquisition systems Industrial process control

The AD5541/AD5542 are single, 16-bit, serial input, voltage output digital-to-analog converters (DACs) that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF. The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C. Offering unbuffered outputs, the AD5541/AD5542 achieve a 1 µs settling time with low power consumption and low offset errors. Providing a low noise performance of 11.8 nV/√Hz and low glitch, the AD5541/AD5542 is suitable for deployment across multiple end systems. The AD5542 can be operated in bipolar mode, which generates a ±VREF output swing. The AD5542 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity. The AD5541/AD5542 utilize a versatile 3-wire interface that is compatible with SPI, QSPI™, MICROWIRE™ and DSP interface standards. The AD5541/AD5542 are available in 8-lead and 14-lead SOIC packages.
