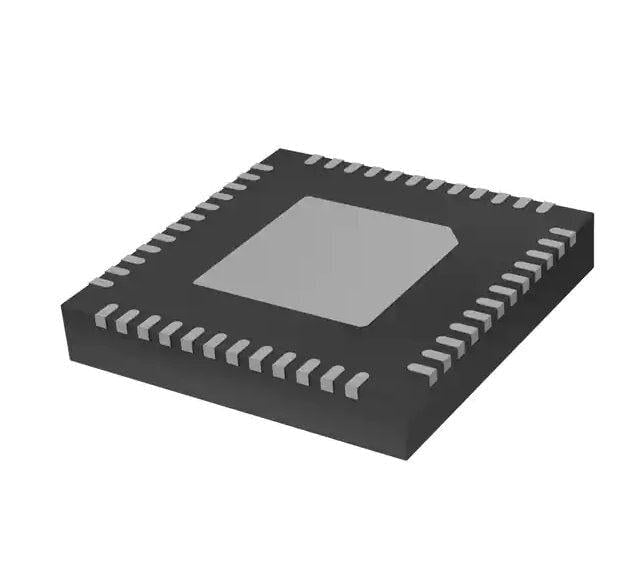

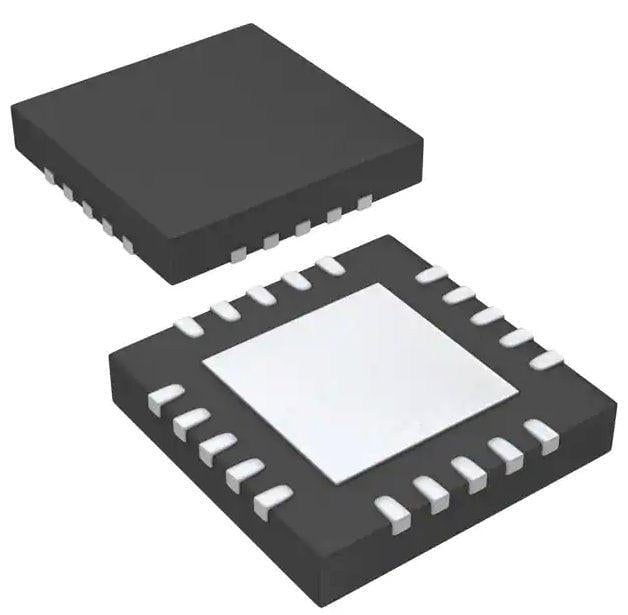

Analog Devices 5V, 10A Synchronous Step-Down Silent Switcher 2 in 3mm × 3mm LQFN, Part #LTC3310JV#PBF | Voltage Regulator | DEX

Analog Devices 5V, 10A Synchronous Step-Down  Silent Switcher 2 in 3mm × 3mm LQFN, Part #LTC3310JV#PBF | Voltage Regulator | DEX is a very small, low noise, monolithic step-down DC/DC converter capable of providing up to 10A of output current from a 2.25V to 5.5V input supply. The device employs Silent Switcher 2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency at switching frequencies as high as 5MHz. For systems with higher power requirements, multi-phasing parallel converters is readily implemented. The LTC3310S uses a constant-frequency, peak current mode control architecture for fast transient response. A 500mV reference allows for low voltage outputs. 100% duty cycle operation delivers low drop out. Other features include a power good signal when the output is in regulation, precision enable threshold, output overvoltage protection, thermal shutdown, a temperature monitor, clock synchronization, mode selection and output short circuit protection.

Features: n Silent Switcher®2 Architecture: Ultralow EMI Emissions (LTC3310S and LTC3310S-1) n High Efficiency: 4.5mΩ NMOS and 16mΩ PMOS n Wide Bandwidth, Fast Transient Response n Safely Tolerates Inductor Saturation in Overload n VIN Range: 2.25V to 5.5V n VOUT Range: 0.5V to VIN n VOUT Accuracy: ±1% with Remote Sense n Peak Current Mode Control n 35ns Minimum On-Time n Programmable Frequency to 5MHz n Shutdown Current: 1µA n Precision 400mV Enable Threshold n Output Soft-Start with Voltage Tracking n Power Good Output n Die Temperature Monitor n Configurable for Paralleling Power Stages n Thermally-Enhanced 3mm × 3mm LQFN Package n AEC-Q100 Qualified for Automotive Applications

Applications: n Automotive/Industrial/Communications n Servers, Telecom Power Supplies n Distributed DC Power Systems (POL) n FPGA, ASIC, µP Core Supplies

QUE:CT-LTC3310JV#PBF

LTC3310JV#PBF
