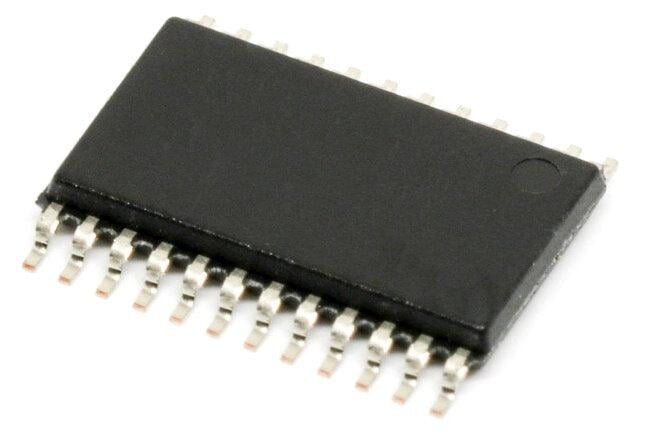

Analog Devices Digital to Analog Converter, Part #AD5724RBREZ | Converter | DEX

Analog Devices Digital to Analog Converter, Part #AD5724RBREZ | Converter | DEX

Regular price $74.00 USD
Regular price $74.00 USD Sale price $74.00 USD
Sale Sold out
Shipping calculated at checkout.

Analog Devices Digital to Analog Converter, Part #AD5724RBREZ | Converter | DEX operates from single supply voltages of +4.5 V up to +16.5 V or dual supply voltages from ±4.5 V up to ±16.5 V. Nominal full-scale output range is software selectable from +5 V, +10 V, +10.8 V, ±5 V, ±10 V, or ±10.8 V. Integrated output amplifiers, reference buffers, and proprietary power-up/power-down control circuitry are also provided.

The devices offer guaranteed monotonicity, integral nonlinearity (INL) of ±16 LSB maximum, low noise, 10 µs typical settling time, and an on-chip +2.5 V reference.

Features: Complete, quad, 12-/14-/16-bit DACs Operates from single/dual supplies Software programmable output range +5V, +10V, +10.8V, ±5 V, ±10 V, ±10.8 V INL error: ±16 LSB maximum, DNL error: ±1 LSB maximum Total unadjusted error (TUE): 0.1% FSR maximum Settling time: 10 µs typical Integrated reference: ±5 ppm/°C maximum Integrated reference buffers Output control during power-up/brownout Simultaneous updating via LDAC Asynchronous CLR to zero scale/midscale DSP/microcontroller-compatible serial interface 24-lead TSSOP Operating temperature range: −40°C to +85°C iCMOS® process technology

Applications: Industrial automation Closed-loop servo control, process control Automotive test and measurement Programmable logic controllers



ADS:AD5724RBREZ

AD5724RBREZ
