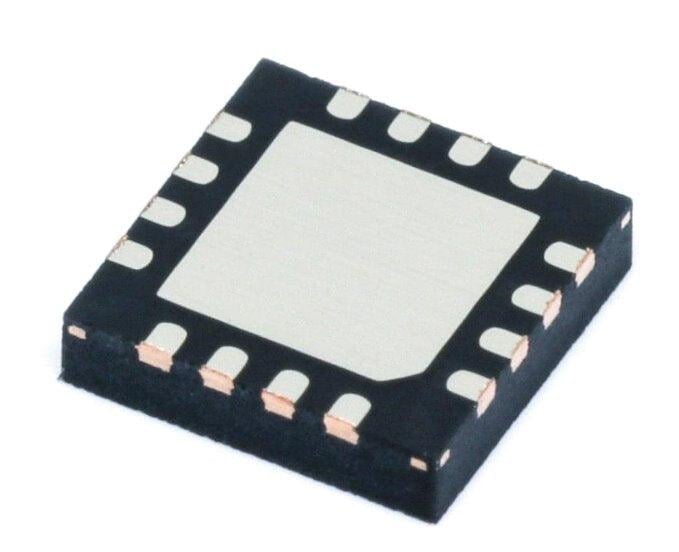

Analog Devices GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 2.1 - 2.9 GHz, Part #HMC715LP3E | RF Amplifier | DEX features: Noise Figure: 0.9 dB Gain: 19 dB Output IP3: +33 dBm Single Supply: +3V to +5V 16 Lead 3x3mm QFN Package: 9 mm2

Applications: The HMC715LP3(E) is ideal for: • Cellular/3G and LTE/WiMAX/4G • BTS & Infrastructure • Repeaters and Femtocells • Public Safety Radio • Access Points

The HMC715LP3(E) is a GaAs PHEMT MMIC Low Noise Amplifier that is ideal for Cellular/3G and LTE/WiMAX/4G basestation front-end receivers operating between 2.1 and 2.9 GHz. The amplifier has been optimized to provide 0.9 dB noise figure, 19 dB gain and +33 dBm output IP3 from a single supply of +5V. Input and output return losses are excellent and the LNA requires minimal external matching and bias decoupling components. The HMC715LP3(E) can be biased with +3V to +5V and features an externally adjustable supply current which allows the designer to tailor the linearity performance of the LNA for each application.

MOE:HMC715LP3E

HMC715LP3E
