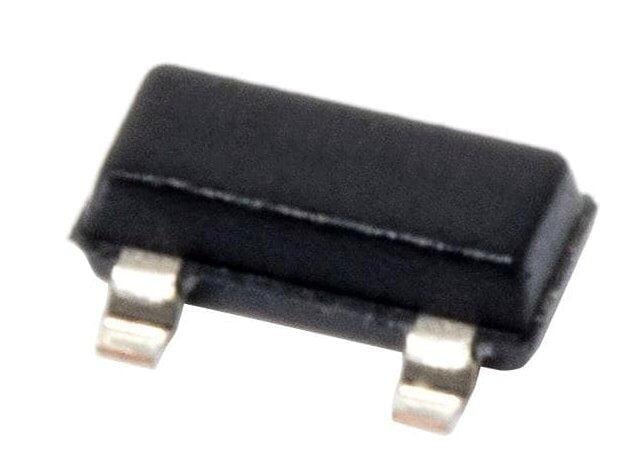

Analog Devices Micropower Precision Series Reference, Part #LT1460JCS3-3#PBF | Voltage Reference | DEX

Analog Devices Micropower Precision Series Reference, Part #LT1460JCS3-3#PBF | Voltage Reference | DEX

Regular price $50.00 USD
Regular price $50.00 USD Sale price $50.00 USD
Sale Sold out
Shipping calculated at checkout.

Analog Devices Micropower Precision Series Reference, Part #LT1460JCS3-3#PBF | Voltage Reference | DEX uses curvature compensation to obtain low temperature coefficient and trimmed precision thin-film resistors to achieve high output accuracy. The reference will supply up to 20mA with excellent line regulation characteristics, making it ideal for precision regulator applications.

This series reference provides supply current and power dissipation advantages over shunt references that must idle the entire load current to operate. Additionally, the LT1460 does not require an output compensation capacitor, yet is stable with capacitive loads. This feature is important where PC board space is a premium or fast settling is demanded. In the event of a reverse battery connection, these references will not conduct current, and are therefore protected from damage.

Features: n Trimmed to High Accuracy: 0.075% Max n Low Drift: 10ppm/°C Max n Industrial Temperature Range n Temperature Coefficient Guaranteed to 125°C n Low Supply Current: 130µA Max (LT1460-2.5) n Minimum Output Current: 20mA n No Output Capacitor Required n Reverse Battery Protection n Minimum Input/Output Differential: 0.9V n Available in S0-8, MSOP-8, PDIP-8, TO-92 and SOT- 23 Package

Applications: n Handheld Instruments n Precision Regulators n A/D and D/A Converters n Power Supplies n Hard Disk Drives



ADS:LT1460JCS3-3#PBF

LT1460JCS3-3#PBF
