Motorola Board SBC 366MHZ 128MB IEEE Part #MCP750-1352 | Processor | DEX

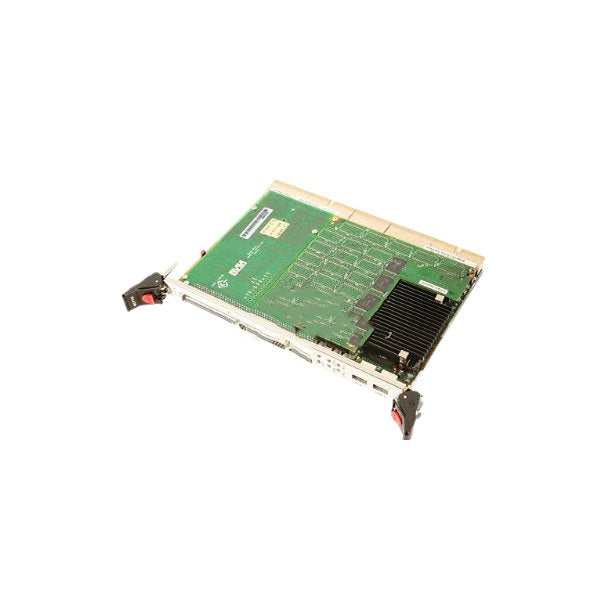

Motorola Board SBC 366MHZ 128MB IEEE Part #MCP750-1352

 Features

• PowerPC 750 32-bit microprocessor
• 32KB/32KB L1 cache, 1MB L2 cache
• 16 to 256MB of ECC DRAM
• Up to 9MB on-board Flash memory
• CompactFlash memory card socket
• 10/100Mb/s Ethernet interface
• Single 32/64-bit PMC expansion slot with front panel or backplane I/O
• Two Universal Serial Bus (USB) ports
• Two async serial ports, two async/sync serial ports, parallel port, keyboard, and mouse
• PCI Enhanced IDE (EIDE) controller and floppy disk controller
• On-board debug monitor with self-test diagnostics
• 8K x 8 NVRAM and time-of-day clock with replaceable battery backup
• Four 32-bit timers, three watchdog timers
• 64-bit CompactPCI interface
• Optional secondary CompactPCI interface
• Single CompactPCI slot, even when fully configured.

MOT:MCP750-1352

MCP750-1352
