Bourns 5.0SMDJ Transient Voltage Suppressor, Part #: 5.0SMDJ43A | DEX
Bourns 5.0SMDJ Transient Voltage Suppressor, Part #: 5.0SMDJ43A | DEX
Couldn't load pickup availability
Bourns 5.0SMDJ Transient Voltage Suppressor, Part #: 5.0SMDJ43A | DEX features: n RoHS compliant* and halogen free** n Surface mount SMC package n Standoff voltage: 5 to 170 volts n Peak Pulse Power: 5000 watts n Typical temperature coefficient: DVBR = 0.1 % x VBR @ 25 °C x DT
The LTF:5.0SMDJ43A is a TVS diode from Littelfuse. Let’s explore its specifications:
Series: 5.0SMDJ
Reverse Standoff Voltage (V<sub>R</sub>): 43 V
Peak Pulse Current (I<sub>pp</sub>) (10x1000 μs waveform): 72.1 A
Breakdown Voltage (V<sub>BR</sub>) @ I<sub>T</sub>: 47.8 V
Maximum Clamp Voltage (V<sub>c</sub>): 69.4 V
Uni/Bi-Directional: Unidirectional

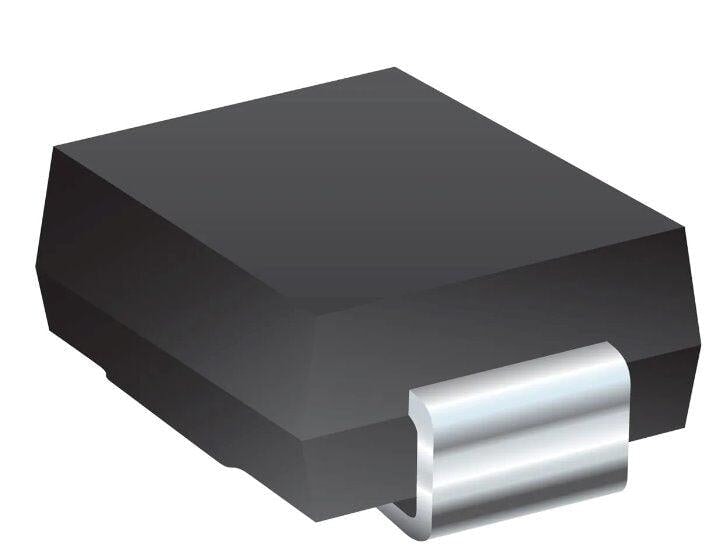

Package/Case: DO-214AB (SMCJ)
Operating Temperature Range: -40°C to +150°C
Applications: Ideal for protecting I/O interfaces, VCC buses, and other vulnerable circuits in telecom, computer, industrial, and consumer electronic applications.
The 5.0SMDJ series is specifically designed to safeguard sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Its features include a peak pulse power capability of 5000 W, low profile surface mount packaging, and excellent clamping capability. It’s a reliable choice for surge protection in various electronic systems
LTF:5.0SMDJ43A
5.0SMDJ43A
