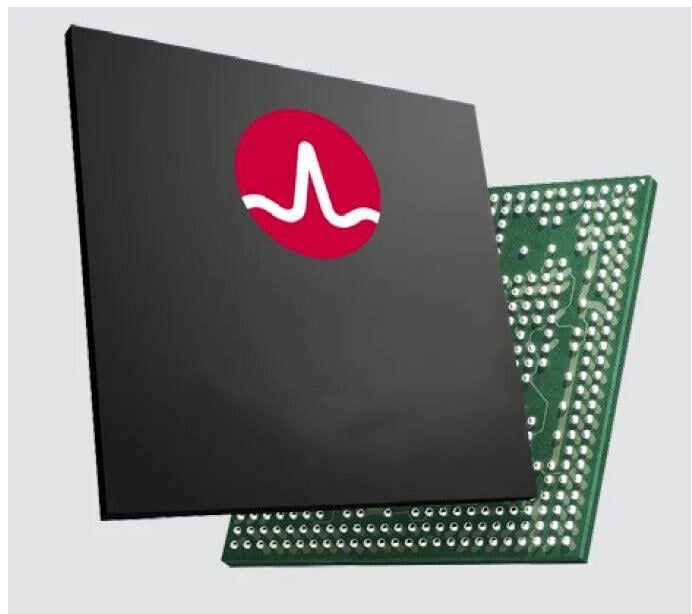

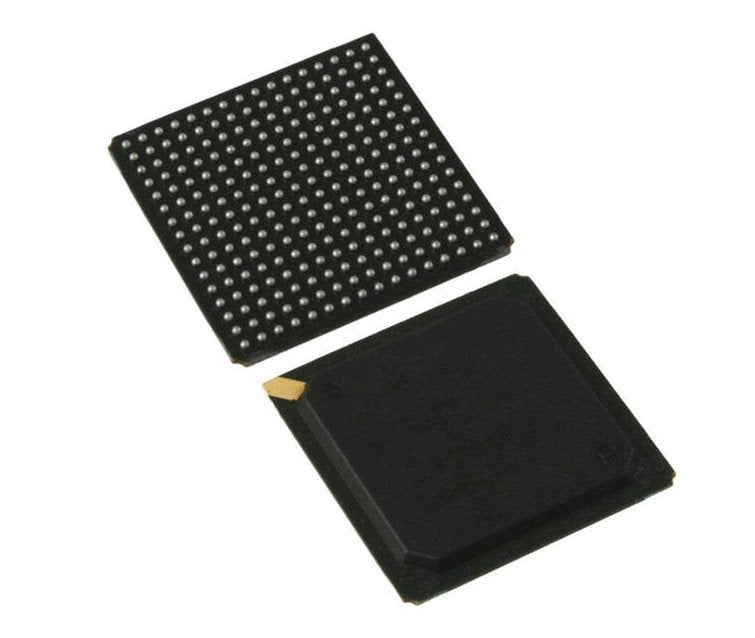

Broadcom Low-Power Five-Port GbE Time-Sensitive Networking Switch - IC - part #BCM53154MB1ILFBG

The Broadcom® BCM53154 is a next-generation ultra-low-power five-port GbE switch. The BCM53154 is based on the new 28-nm RoboSwitch™ 2 architecture and focuses on power-sensitive applications up to five ports— specifically daisy-chain and star topologies in industrial environments as well as low port count unmanaged and web-managed SMB switches.

The BCM53154 supports four 10/100/1000BASE-T ports with integrated GPHYs, a single 1GbE/2.5GbE SGMII port, and a single RGMII 1GbE port.

The BCM53154 is designed for next-generation cost-sensitive applications in the Industrial and SMB markets that require advanced forwarding engines that were not available in prior ICs. Specifically, this new switch supports Time-Sensitive Networking (TSN) and low-latency cut-through forwarding technologies that are essential in many of today’s Industrial market segments. The BCM53154 also supports the new IEEE 802.1BR Port Extender standard that enables the construction of large, yet extremely cost-effective, distributed SMB switching platforms.

Users of the BCM53154 can take advantage of the IC-integrated ARM CPU to build a complete SMB or Industrial switching solution without adding an external processor. More so, for software needs users can utilize the RoboSwitch 2 ROBO-OS™ operating system and significantly reduce their time-to-market with the new hardware.

Broadcom Low-Power Five-Port GbE Time-Sensitive Networking Switch - IC - part #BCM53154MB1ILFBG

BRM:BCM53154MB1ILFBG
