BROADCOM CORP
Broadcom Ultra-Low Power Layer2 GE/FE Switch with 10G Uplinks Ethernet IC - part #BCM53161XUB1KLFBG
Broadcom Ultra-Low Power Layer2 GE/FE Switch with 10G Uplinks Ethernet IC - part #BCM53161XUB1KLFBG
Couldn't load pickup availability
Features
ARM Cortex-M7 at up to 400 MHz.
Operational mode: Unmanaged.
Up to 4×SGMII ports for 1GE/2.5GE connectivity.
Up to 2×10G XFI with KR support.
1 × RGMII.
Switch cascading.
16K entry MAC address table
1K multicast group support.
128 KB packet buffer.
srTCM and trTCM meters (support color aware and color blind modes).
Eight CoS queues per port with priority flow-control.
IEEE 802.1p, MAC, and DSCP packet classification.
Auto Loop detection.
Auto DoS.
Auto VOIP.
Auto QOS.
Auto IGMP snooping.
1K packets and bytes counters.
IEEE 802.3az Energy Efficient Ethernet (EEE).
Jumbo frame support: up to 9728 bytes.

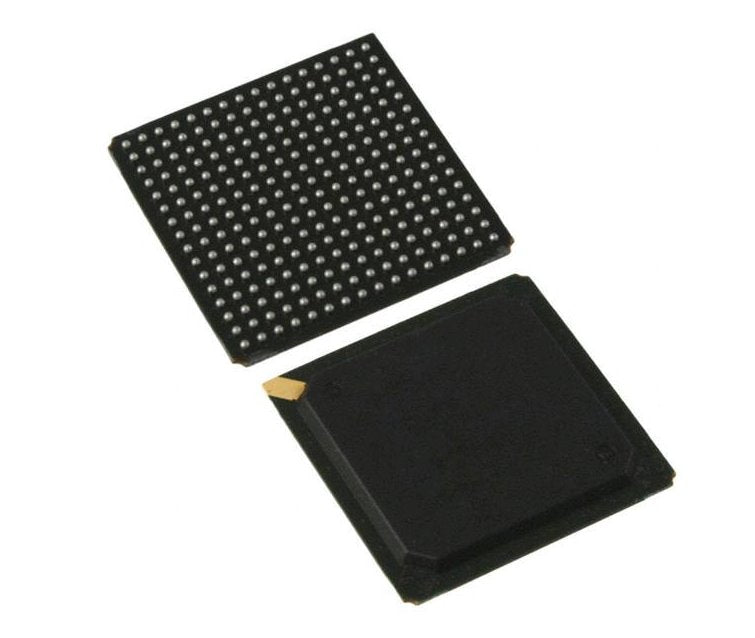

425-pin, 19×19 mm2 FBGA package.
JTAG support.
Includes one UART and MDIO interface, seven I2C interfaces, and 16 GPIOs (via the MFIO).
Broadcom Ultra-Low Power Layer2 GE/FE Switch with 10G Uplinks Ethernet IC - part #BCM53161XUB1KLFBG
BRM:BCM53161XUB1KLFBG
