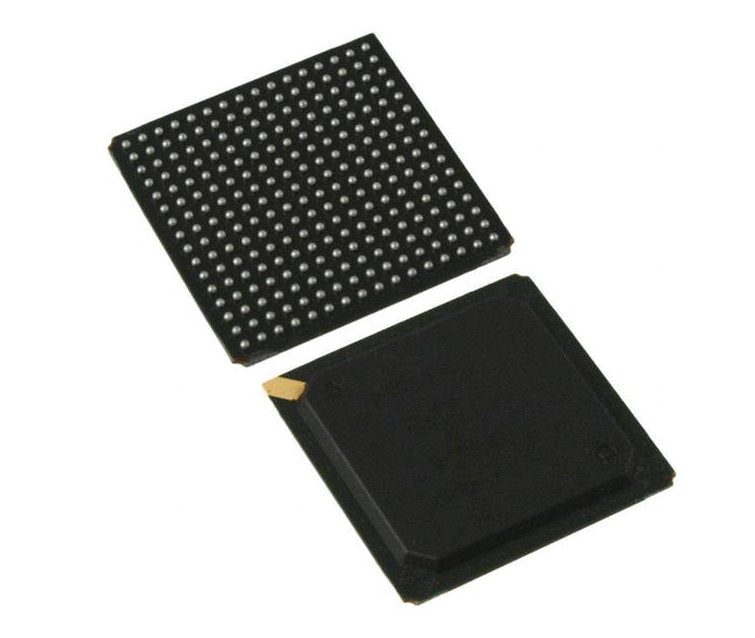

Broadcom Dual-Port 10/100/1000Base-T Gigabit Ethernet Transceiver - IC - part #BCM5482A2KFB

FEATURES

• Dual-port integrated 10BASE-T/100BASE-TX/1000BASE-T Gigabit Ethernet transceiver

• RGMII, SGMII, and SerDes MAC interface options

• 1-Gbps line-side SerDes with RGMII MAC interface

• Fully compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards

• 0.13-micron CMOS—low power and cost

• Supports copper or fiber in RGMII mode

• Low power

• Trace-matched output impedance

• Line-side and MAC-side loopback

• Low EMI emissions

• Robust cable-sourced electrostatic discharge (CESD) tolerance

• Support for jumbo packets up to 10 kB

• IEEE 1149.1 (JTAG) boundary scan

• 121-pin BGA package

Broadcom Dual-Port 10/100/1000Base-T Gigabit Ethernet Transceiver - IC - part #BCM5482A2KFB

BRM:BCM5482A2KFB
