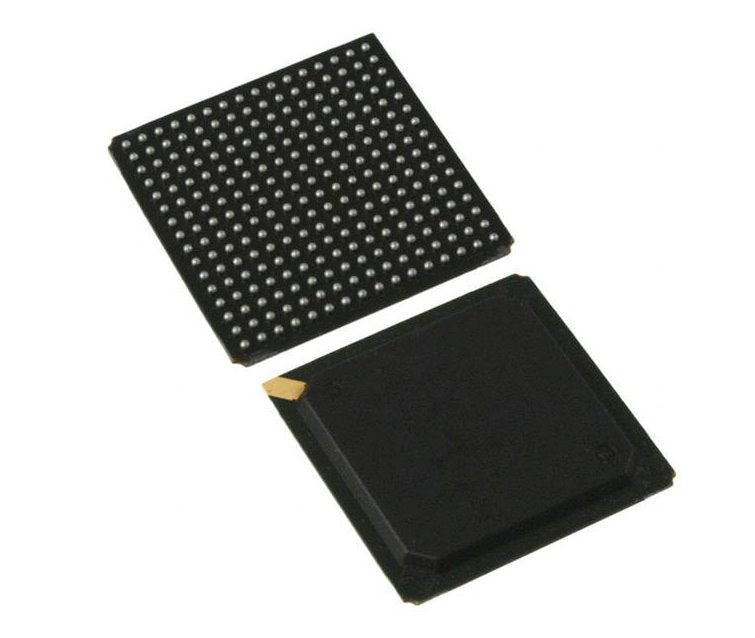

Broadcom MULTILAYER 12-PORT GIGABIT ETHERNET SWITCH IC - part #BCM56960B1KFSBG

Features

• 12 10/100/1000-Mbps Ethernet ports with copper or fibre connectivity

• All address tables and buffer memory fully integrated on-chip

• Support for jumbo frames of up to 9 KB in size

• Advanced full-duplex end-to-end flow and congestion control with head-of-line blocking prevention

• ContentAware™ packet filtering and classification per-port

• Wirespeed operation

• Support for 802.1p, TOS/DiffServ, policing, shaping, marking, and remarking

• Rate control of broadcast, unknown multicast and unicast packets

• Eight queues per port

• Support for double 802.1q VLAN tagging and VLAN translation

• Hardware-based IP multicast routing and forwarding

• Support for replication

• Equal and weighted cost multipath routing for load balancing

• Advanced diagnostic features including JTAG boundary scan and BIST functionality

• Low power consumption of 4.65W in a 480-pin PBGA package

• Pin-to-pin compatible with the BCM569
