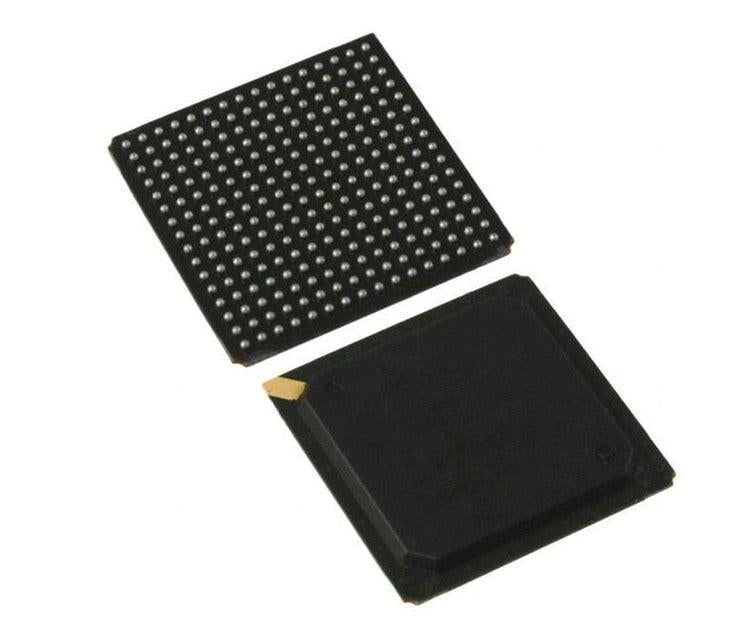

Broadcom PCI Interface IC | Part #PEX8648-BB50RBI G | Integrated Circuit | DEX

The ExpressLane PEX 8648 device offers PCI Express switching capability enabling users to add scalable high bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage systems, and communications platforms. The PEX 8648 is well suited for fan-out, aggregation and peer-to-peer applications.

Features:

• 48-lane, 12-port PCIe Gen2 switch
• Integrated 5.0 GT/s SerDes
• 27 x 27mm, 676-pin FCBGA package
• Typical Power: 3.7 Watts
• Standards Compliant
• PCI Express Base Specification, r2.0
• PCI Power Management Spec, r1.2
• Microsoft Vista Compliant
• Supports Access Control Services
• Dynamic link-width control
• Dynamic SerDes speed control
• High Performance
• Non-blocking switch fabric
• Full line rate on all ports
• Packet Cut-Thru with 140nz max packet latency (x16 to x16)
• 2KB Max Payload size
• Read Pacing
• Dual-Cast

BRM:PEX8648-BB50RBI G

PEX8648-BB50RBI G
