The ExpressLane PEX8712-CA80BC G device offers Multi-Host PCI Express switching capability enabling users to connect multiple hosts to their respective endpoints via scalable, high bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms. The PEX 8712 is well suited for fan-out, aggregation, and peer-to-peer traffic patterns.

Highlights

• 12-lane, 3-port PCIe Gen 3 switch
• Integrate 8.0 GT/s SerDes d

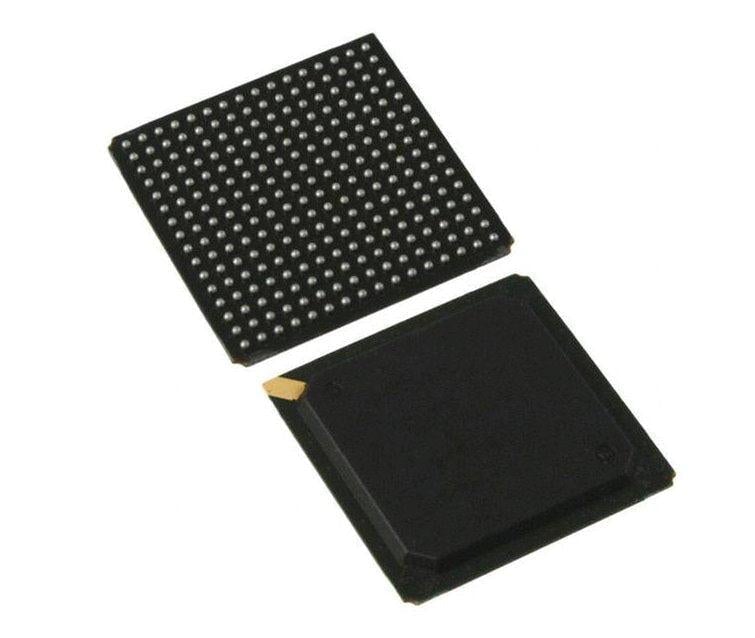

• 19 x 19mm2, 324-pin FCBGA package
• Typical Power: 3.5 Watts

Key Features

• Standards Compliant a
• PCI Express Base Specification, r3.0
• Compatible w/ PCIe r1.0a/1.1 & 2.0)
• PCI Power Management Spec, r1.2
• Microsoft Vista Compliant
• Supports Access Control Services
• Dynamic link-width control

BRM:PEX8712-CA80BC G

PEX8712-CA80BC G
