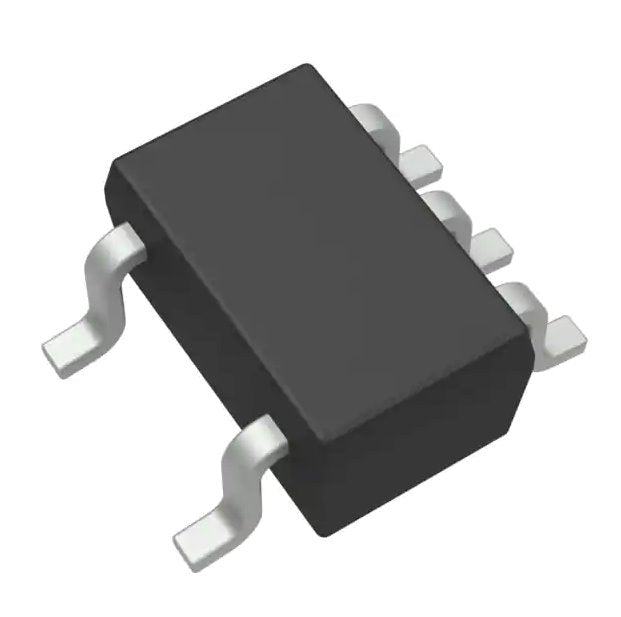

Texas Instruments IC Linear SC-70-5 TI | IC | DEX

Texas Instruments IC Linear SC-70-5 TI | IC | DEX

Regular price $10.00 USD
Regular price Sale price $10.00 USD
Sale Sold out
Shipping calculated at checkout.

Texas Instruments IC Linear SC-70-5 TI

The TPS715 low-dropout (LDO) linear voltage regulators are low quiescent current devices that offer the benefits of a wide input voltage range and low-power operation in miniaturized packaging. The low dropout voltage and low quiescent current of the TPS715 allows operation at extremely low power levels. Thus, the TPS715 is designed for batterypowered applications and as a power-management attachment to low-power microcontrollers. The TPS715 is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715 LDOs support a low dropout of typically 415 mV at 50 mA of load current. The low quiescent current (3.2 μA typically) is stable over the entire range of output load current (0 mA to 50 mA). The TPS715 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault


  • Input voltage range: 2.5 V to 24 V (30 V max)
  • Very low IQ: 3.2 μA at 50-mA load current
  • Output current: Up to 50 mA
  • Stable with output capacitor ≥ 0.47 μF
  • Available output voltage options:
    • Fixed: 1.8 V, 1.9 V, 2.3 V, 2.5 V, 3 V, 3.3 V, 3.45 V, 5 V
    • Adjustable: 1.2 V to 15 V
  • Overcurrent protection
  • Package: 5-pin SC70 (DCK)
  • Specified junction temperature:
  • 40°C to +125°C
