STMicroelectronics IC Pressure Sensor 10-VFLGA ST Micro

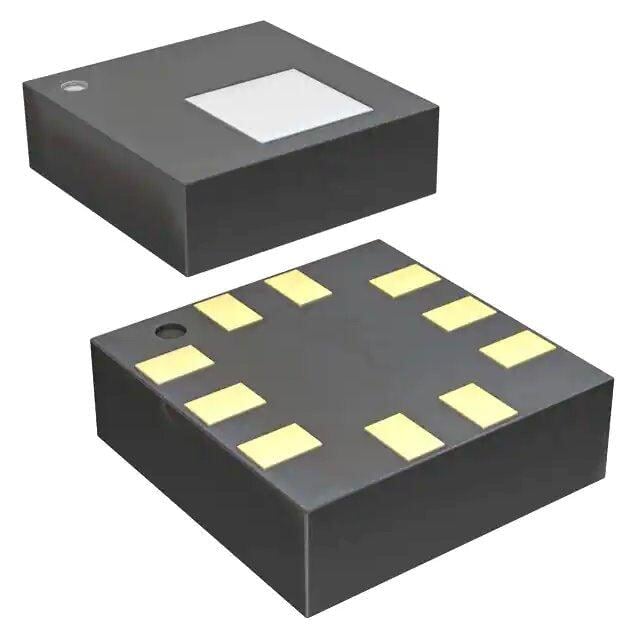

The LPS25HB is a piezoresistive absolute pressure sensor which functions as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application. The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST. The LPS25HB is available in a full-mold, holed LGA package (HLGA). It is guaranteed to operate over a temperature range extending from -30 to +105 °C. The package is holed to allow external pressure to reach the sensing element.

Features

• 260 to 1260 hPa absolute pressure range
• High-resolution mode: 0.01 hPa RMS
• Low power consumption
• Low-resolution mode: 4 μA
• Low current & noise mode with FIFO: 4.5 μA
• High overpressure capability: 20x full scale
• Embedded temperature compensation
• 24-bit pressure data output
• ODR from 1 Hz to 25 Hz
• SPI and I2C interfaces
• Embedded FIFO
• Interrupt functions: Data Ready, FIFO flags, pressure thresholds
• Supply voltage: 1.7 to 3.6 V
• High shock survivability: 10,000 g
• ECOPACK lead-free compliant

Applications

• Altimeter and barometer for portable devices
• Enhanced GPS applications
• Weather station equipment
• Wearable devices

SLE:LPS25HBTR

LPS25HBTR
