TEXAS INSTRUMENTS

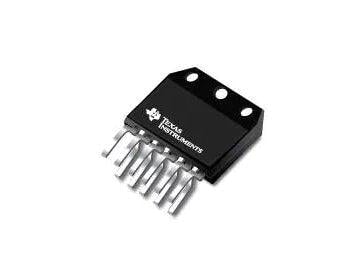

Texas Instruments IC LM3886TF Audio Amp ISO 68W Part #LM3886TF | IC | DEX

Texas Instruments IC LM3886TF Audio Amp ISO 68W Part #LM3886TF | IC | DEX

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Shipping calculated at checkout.

 Texas Instruments IC LM3886TF Audio Amp ISO 68W Part #LM3886TF

The LM3886 is a high-performance audio power 23

Features:

  • 68W Cont. Avg. Output Power into 4Ω at VCC = amplifier capable of delivering 68W of continuous ±28V average power to a 4Ω load and 38W into 8Ω with
  • 38W Cont. Avg. Output Power into 8Ω at VCC = 0.1% THD+N from 20Hz–20kHz. ±28V The performance of the LM3886, utilizing its Self
  • 50W Cont. Avg. Output Power into 8Ω at VCC = Peak Instantaneous Temperature (°Ke) (SPiKe) ±35V protection circuitry, puts it in a class above discrete
  • 135W Instantaneous Peak Output Power and hybrid amplifiers by providing an inherently, Capability dynamically protected Safe Operating Area (SOA). SPiKe protection means that these parts are
  • Signal-to-Noise Ratio ≥ 92dB completely safeguarded at the output against
  • An Input Mute Function overvoltage, undervoltage, overloads, including shorts
  • Output Protection from a Short to Ground or to the supplies, thermal runaway, and instantaneous to the Supplies via Internal Current Limiting temperature peaks. Circuitry The LM3886 maintains an excellent signal-to-noise
  • Output Over-Voltage Protection against ratio of greater than 92dB with a typical low noise Transients from Inductive Loads floor of 2.0µV. It exhibits extremely low THD+N values of 0.03% at the rated output into the rated
  • Supply Under-Voltage Protection, not Allowing load over the audio spectrum, and provides excellent Internal Biasing to Occur when |VEE| + |VCC| ≤ linearity with an IMD (SMPTE) typical rating of 12V, thus Eliminating Turn-On and Turn-Off 0.004%. Transients
  • 11-Lead TO-220 Package
  • Wide Supply Range 20V - 94V



TEX:LM3886TF

LM3886TF
