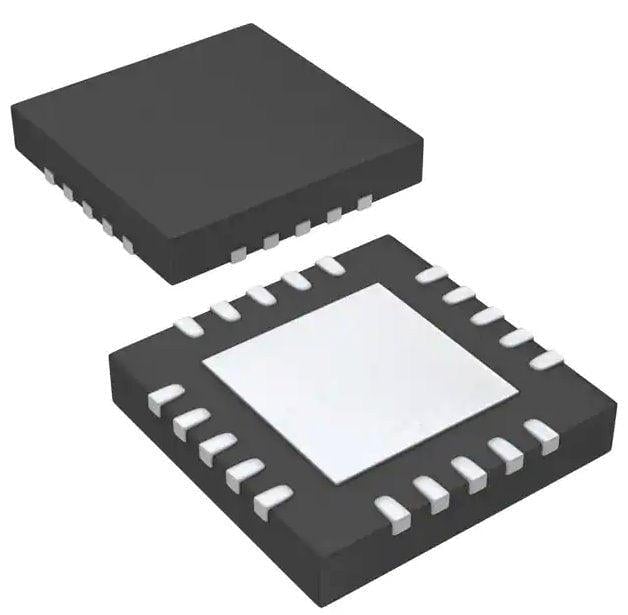

Texas Instruments IC ADC 12BIT QFN-20 TI | IC | DEX

Texas Instruments IC ADC 12BIT QFN-20 TI | IC | DEX

Regular price $80.00 USD
Regular price Sale price $80.00 USD
Sale Sold out
Shipping calculated at checkout.

Texas Instruments IC ADC 12BIT QFN-20 TI

The ADS8028 is a 12-bit analog-to-digital converter (ADC), capable of operating at sampling speeds up to 1 MSPS. The device is based on a successive approximation register (SAR) core and provides an inherent sample-and-hold (SH) front-end.

In addition to having eight analog input channels, the ADS8028 offers an internal temperature sensor with 0.25°C resolution and an internal voltage reference. A nine-channel internal multiplexer enables multiple channels to be selected (including the internal temperature sensor) that are indefinitely scanned in a sequential manner. A simple SPI-compatible serial interface provides easy communication and control between the device and host controller. The digital supply can operate from 1.65 V to 5.25 V, enabling direct interface with a wide range of processors and controllers.

At full speed of 1 MSPS, the ADS8028 dissipates only 17 mW. The device offers flexible power-down modes to save power when conversions are not being performed. The ADS8028 performance is being performed. The ADS8028 performance is range of –40°C to +125°C.



Features

  • Outstanding Performance:
    • Throughput: Up to 1 MSPS
    • No Missing Codes: 12 Bits
    • INL: ±0.5 LS
    • SNR: 72 dB
  • Highly Integrated:
    • Eight Analog Inputs
    • High-Resolution Internal Temperature Sensor
    • Nine-Channel Multiplexer with Channel Sequencer
    • Low-Drift Internal Voltage Reference
  • Wide Supply Range:
    • Analog Supply (AVDD): 2.7 V to 5.25 V
    • Digital Supply (DVDD): 1.65 V to 5.25 V
  • Low Power:
    • 17 mW at 1 MSPS
    • Flexible Power-Down Modes



Applications

  • Programmable Logic Controls (PLCs)
  • Industrial Process Controls (IPCs)
  • Telecommunications
  • Power-Supply Monitoring
  • PCB Hot-Spot Analysis
  • Battery-Powered Applications



TEX:ADS8028IRTJT

ADS8028IRTJT
