Diodes Incorporated

Diodes Incorporated SINGLE CHANNEL POWER DISTRIBUTION LOAD SWITCH, Part #: AP22811AW5-7 | DEX

Diodes Incorporated SINGLE CHANNEL POWER DISTRIBUTION LOAD SWITCH, Part #: AP22811AW5-7 | DEX

Regular price $20.41 USD
Regular price $20.41 USD Sale price $20.41 USD
Sale Sold out
Shipping calculated at checkout.

Diodes Incorporated SINGLE CHANNEL POWER DISTRIBUTION LOAD SWITCH, Part #: AP22811AW5-7 | DEX is a single channel current-limited integrated high-side power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with both polarities of Enable input.

The device has fast short-circuit response time for improved overall system robustness, and has an integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. A 6ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components.

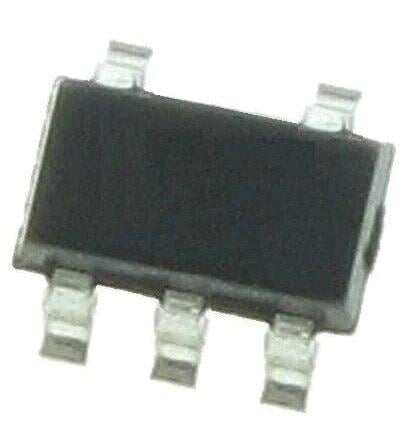

The AP22811 is available in standard Green SOT25 and MSOP-8 packages with RoHS compliance.



DOI:AP22811AW5-7

AP22811AW5-7
