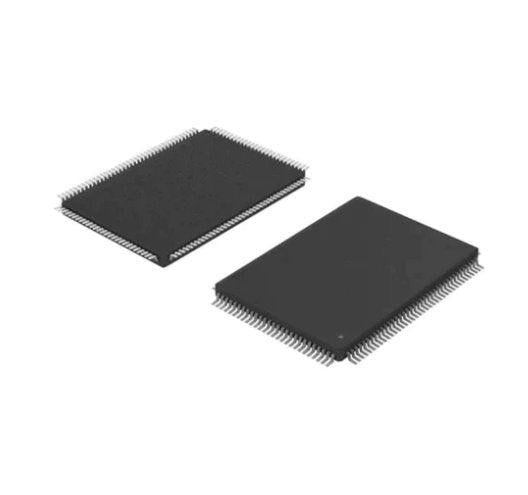

EZ-USB FX1™ USB Microcontroller Full Speed USB Peripheral Controller part #: CY7C64713-128AXC
EZ-USB FX1™ USB Microcontroller Full Speed USB Peripheral Controller part #: CY7C64713-128AXC
Features
■ Single chip integrated USB transceiver, SIE, and enhanced 8051 microprocessor
■ Fit, form, and function upgradable to the FX2LP (CY7C68013A)
❐ Pin compatible
❐ Object code compatible
❐ Functionally compatible (FX1 functionality is a subset of the FX2LP)
■ Draws no more than 65 mA in any mode, making the FX1 suitable for bus powered applications
■ Software: 8051 runs from internal RAM, which is:
❐ Downloaded using USB
❐ Loaded from EEPROM
❐ External memory device (128 pin configuration only)
■ 16 KB of on-chip code/data RAM
■ Four programmable BULK/INTERRUPT/ISOCHRONOUS endpoints
❐ Buffering options: double, triple, and quad
■ Additional programmable (BULK/INTERRUPT) 64-byte endpoint
■ 8- or 16-bit external data interface
■ Smart media standard ECC generation
■ GPIF
❐ Allows direct connection to most parallel interfaces; 8- and 16-bit
❐ Programmable waveform descriptors and configuration registers to define waveforms
❐ Supports multiple ready (RDY) inputs and Control (CTL) outputs
EZ-USB FX1™ USB Microcontroller Full Speed USB Peripheral Controller part #: CY7C64713-128AXC
