IGBT BOARD, INGETEAM-AK9786

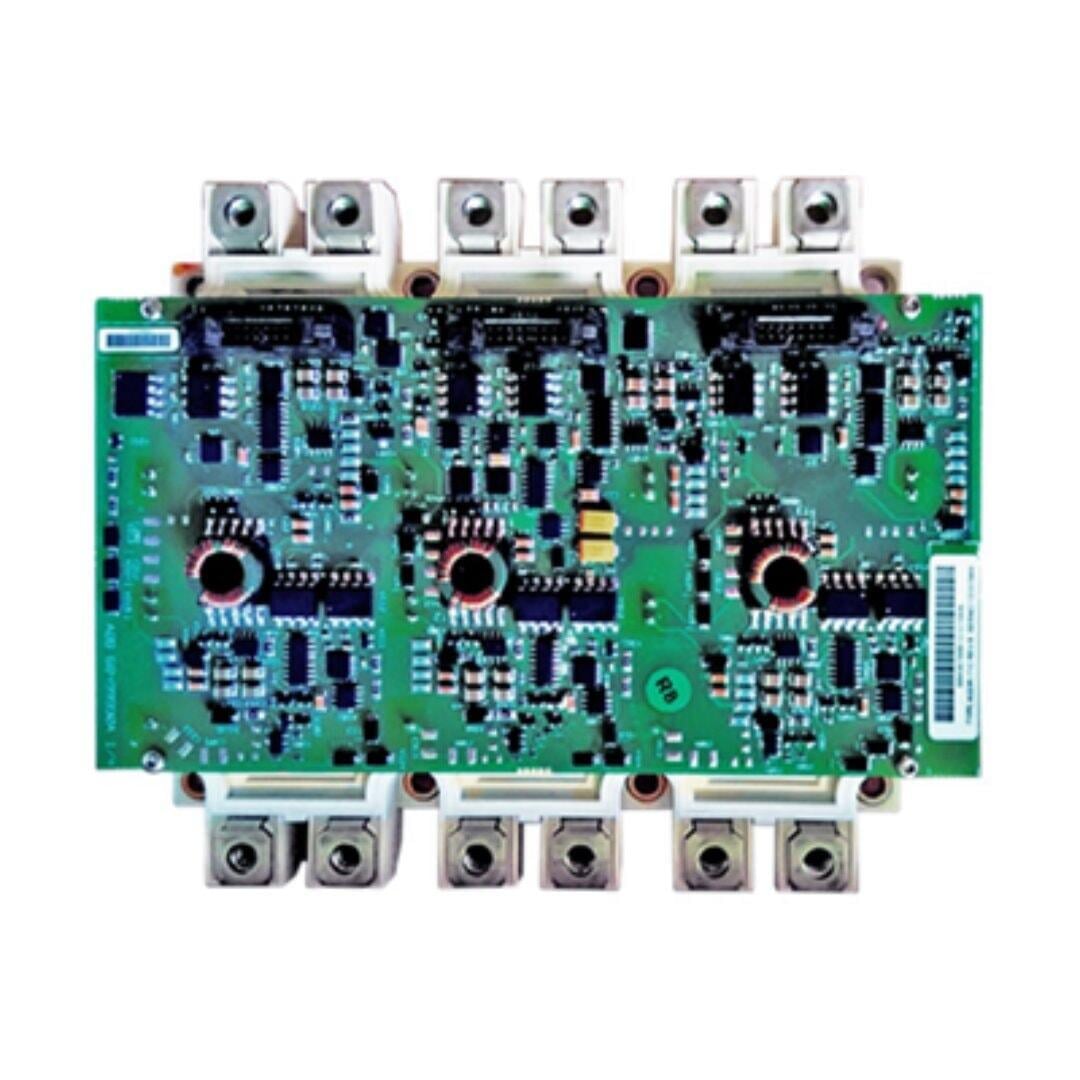

ECONO V + ADAPTER ASSEMBLY (PART # AK9786)
KEY FEATURES:
- Brand new power module for Ingeteam converters
- Fully compatible with installed modules
- Features new Infineon-IGBTs for enhanced performance and reliability
- Includes adapter card for optimized triggering and control
TESTING SUMMARY:
- Adapter board testing to confirm functionality, switching time, and power supply voltage
- IGBT Module Diode and IGBT Characterization testing to rated current
- IGBT Module Switching characterization testing to specifications
- IGBT module Power switching functional testing at Converter rated switching frequency
DATASHEET
DESCRIPTION:
The AK9786 module comprises:
- A semiconductor module (type to be confirmed) containing six IGBTs and antiparallel diodes
- An adapter card for triggering semiconductors in two groups of three parallel switches
- Adaptation of driver card signals for IGBT gate control
CHARACTERISTICS:
Technical:
- IGBT Module IGBT Nominal Current:Â (to be confirmed)
- IGBT Maximum Voltage:Â (to be confirmed)
CONNECTIONS:
- Semiconductors connected in parallel (three TOP switches, three BOTTOM switches)
- Parallelizing modules requires power connections and desaturation protection (using side connectors X2A, X3A or X5A, X6A)
Â
Â
IMPORTANT NOTES:
- Please confirm exact technical specifications (IGBT nominal current, maximum voltage, dimensions, weight) for the AK9786 model.
- Provide detailed connection diagrams and tables specific to the AK9786 for clarity.
- Incorporate any additional features or functionalities unique to the AK9786 model.
