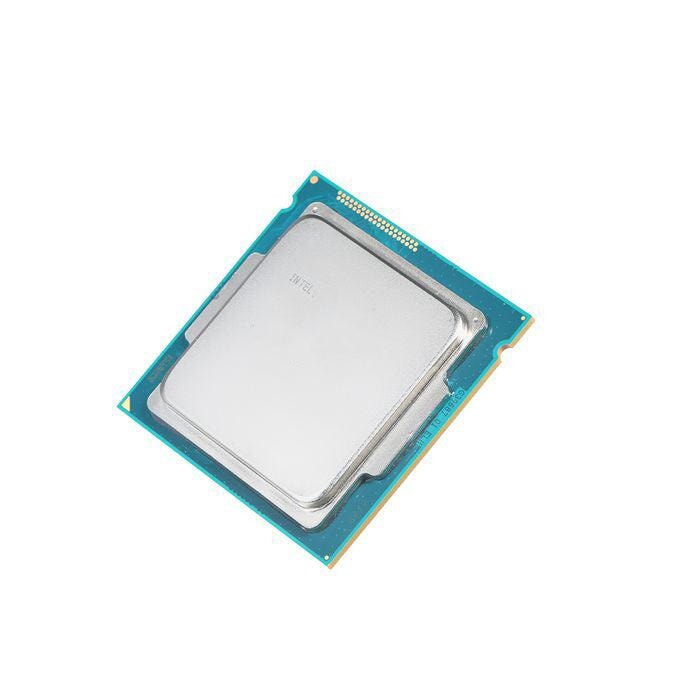

Intel Central Processing Unit part #: BX80601930 S LBKP | CPU | DEX

Intel Central Processing Unit part #: BX80601930 S LBKP System Memory Interface:

-Two channels of LPDDR3 and DDR4 memory with a maximum of two DIMMs per channel. DDR technologies, number of DIMMs per channel, number of ranks per channel are SKU dependent. • UDIMM, SO-DIMM, and Memory Down support (based on SKU) • Single-channel and dual-channel memory organization modes • Data burst length of eight for all memory organization modes • LPDDR3 I/O voltage of 1.2V • DDR4 I/O Voltage of 1.2V • 64-bit wide channels • ECC/Non-ECC UDIMM and SODIMM DDR4 support (based on SKU) • ECC is supported by S-Processor Line Servers and Server Workstations, and by H-Processor Line Mobile workstations SKUs only. • Theoretical maximum memory bandwidth of: — 29.1 GB/s in dual-channel mode assuming 1866 MT/s — 33.3 GB/s in dual-channel mode assuming 2133 MT/s — 37.5 GB/s in dual-channel mode assuming 2400 MT/s — 41.6 GB/s in dual-channel mode assuming 2666 MT/s

ITL:BX80601930 S LBKP

BX80601930 S LBKP
