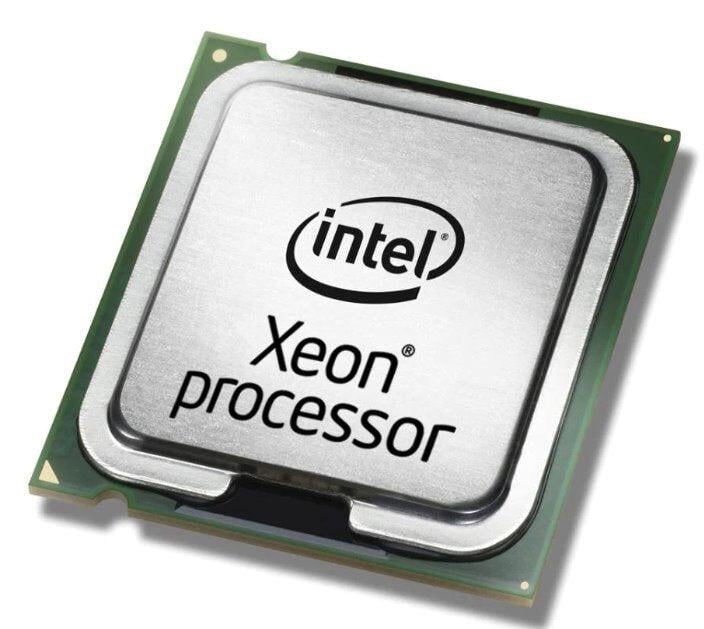

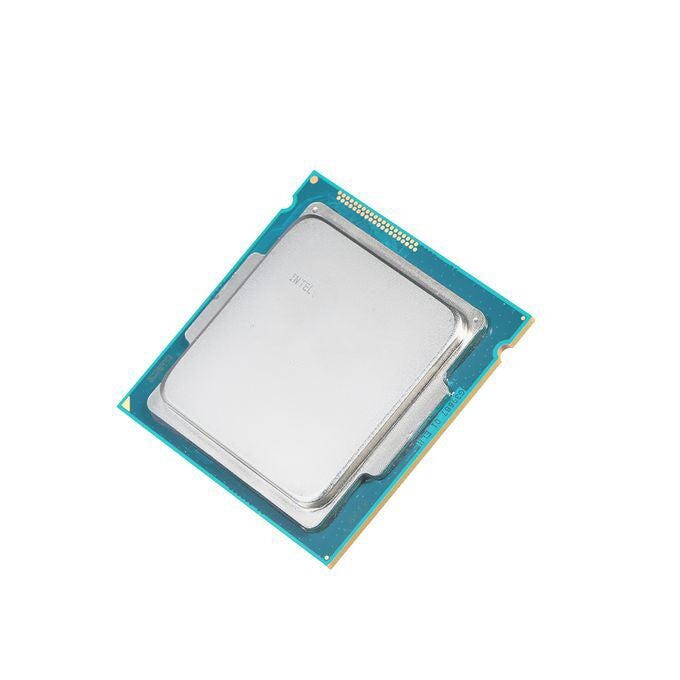

Intel Central Processing Unit part #: CM8064601466508S R14S | CPU | DEX

Intel Central Processing Unit part #: CM8064601466508S R14S System Memory Interface:

• Two channels of DDR3/DDR3L Unbuffered Dual In-Line Memory Modules (UDIMM) with a maximum of two DIMMs per channel. • Single-channel and dual-channel memory organization modes • Data burst length of eight for all memory organization modes • Memory data transfer rates of 1333 MT/s and 1600 MT/s • 64-bit wide channels • DDR3/DDR3L I/O Voltage of 1.5 V for Intel AMT Server, and Workstation • DDR3L I/O voltage of 1.35 V for Rack/Micro Server • The type of the DIMM modules supported by the processor is dependent on the PCH SKU in the target platform: — Server PCH platforms support ECC UDIMMs only — Workstation PCH platforms support ECC and non-ECC UDIMMs • Theoretical maximum memory bandwidth of: — 21.3 GB/s in dual-channel mode assuming 1333 MT/s — 25.6 GB/s in dual-channel mode assuming 1600 MT/s • 1Gb, 2Gb, and 4Gb DDR3/DDR3L DRAM device technologies are supported — Using 4Gb DRAM device technologies, the largest system memory capacity possible is 32 GB, assuming Dual Channel Mode with four x8 dual ranked DIMM memory configuration • Up to 64 simultaneous open pages, 32 per channel (assuming 8 ranks of 8 bank devices) • Processor on-die VREF generation for DDR DQ Read and Write as well as CMD/ADD • Command launch modes of 1n/2n • On-Die Termination (ODT) • Asynchronous ODT • Intel Fast Memory Access (Intel FMA): — Just-in-Time Command Scheduling — Command Overlap — Out-of-Order Scheduling

ITL:CM8064601466508S R14S

CM8064601466508S R14S
