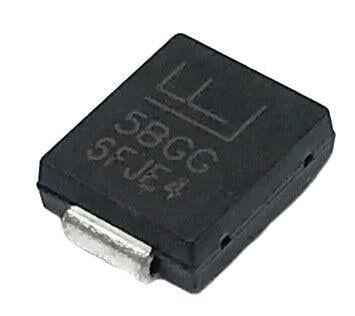

Littelfuse Surface Mount – 5000W, Part #: 5.0SMDJ48A | DEX is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

■ 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01% ■ SMD low profile surface mount package minimizing PCB footprint ■ Typical failure mode is short from over-specified voltage or current ■ Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c ■ IEC 61000-4-2 ESD 30kV(Air), 30kV (Contact) ■ ESD protection of data lines in accordance with IEC 61000- 4-2 ■ EFT protection of data lines in accordance with IEC 61000- 4-4 ■ Built-in strain relief ■ Glass passivated chip junction ■ Fast response time: typically less than 1.0ps from 0V to BV min ■ Excellent clamping capability ■ Low incremental surge resistance ■ Typical IR less than 5μA when VBR min>22V ■ High temperature to reflow soldering guaranteed: 260°C/40sec ■ VBR @ TJ= VBR@25°C x (1+αT x (TJ - 25))(αT:Temperature Coefficient,) ■ UL Recognized compound meeting flammability rating V-0 ■ Meet MSL level1, per J-STD-020, LF maximun peak of 260°C ■ Matte tin lead–free plated ■ Halogen free and RoHS compliant ■ Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01) ■ Recognized to UL 497B as an Isolated Loop Circuit Protector

LTF:5.0SMDJ48A

5.0SMDJ48A
