MICROCHIP TECHNOLOGY INC.

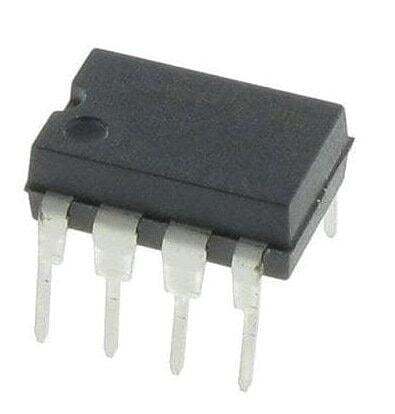

Microchip Technology 256K SPI Bus Serial EEPROM, Part #25AA256-I/P | EEPROM | DEX

Microchip Technology 256K SPI Bus Serial EEPROM, Part #25AA256-I/P | EEPROM | DEX

Regular price $25.00 USD
Regular price Sale price $25.00 USD
Sale Sold out
Shipping calculated at checkout.

Microchip Technology 256K SPI Bus Serial EEPROM, Part #25AA256-I/P | EEPROM | DEX features: • Maximum Clock 10 MHz • Low-Power CMOS Technology: - Maximum Write current: 5 mA at 5.5V, 10 MHz - Read current: 6 mA at 5.5V, 10 MHz - Standby current: 1 µA at 5.5V • 32,768 x 8-Bit Organization • 64-Byte Page • Self-Timed Erase and Write Cycles (5 ms maximum) • Block Write Protection: - Protect none, 1/4, 1/2 or all of array • Built-In Write Protection: - Power-on/off data protection circuitry - Write enable latch - Write-protect pin • Sequential Read • High Reliability: - Endurance: 1,000,000 erase/write cycles - Data retention: > 200 years - ESD protection: > 4000V • Temperature Ranges Supported: • RoHS Compliant • Automotive AEC-Q100 Qualified



MCH:25AA256-I/P

25AA256-I/P
