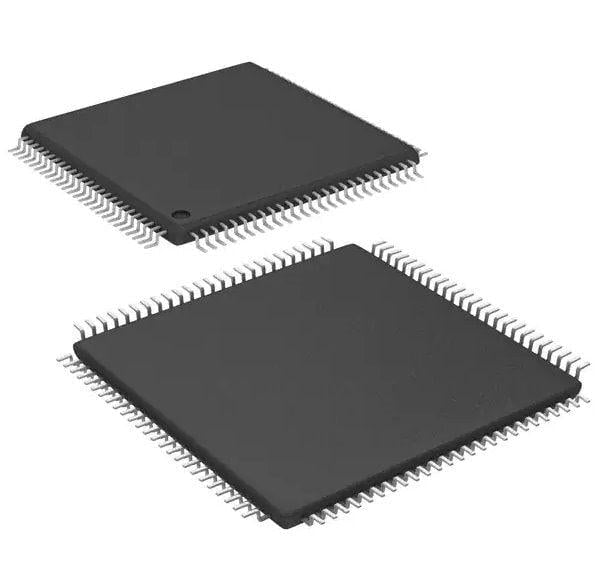

Microchip Technology 32-bit Microcontrollers (up to 512 KB Flash and 128 KB SRAM), Part #: PIC32MX695F512L-80I/PF | DEX

Microchip Technology 32-bit Microcontrollers (up to 512 KB Flash and 128 KB SRAM), Part #: PIC32MX695F512L-80I/PF | DEX has these features:

• 2.3V to 3.6V, -40ºC to +105ºC, DC to 80 MHz

• MIPS16e® mode for up to 40% smaller code size • Code-efficient (C and Assembly) architecture • Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply

• 0.9% internal oscillator (on some variants) • Programmable PLLs and oscillator clock sources • Fail-Safe Clock Monitor (FSCM) • Independent Watchdog Timer • Fast wake-up and start-up

• Low-power management modes (Sleep and Idle) • Integrated Power-on Reset, Brown-out Reset • 0.5 mA/MHz dynamic current (typical) • 41 µA IPD current (typical)

• External graphics interface with up to 34 Parallel Master Port (PMP) pins: - Interface to external graphics controller - Capable of driving LCD directly with DMA and internal or external memory

• ADC Module: - 10-bit 1 Msps rate with one Sample and Hold (S&H) - 16 analog inputs - Can operate during Sleep mode • Flexible and independent ADC trigger sources • Comparators: - Two dual-input Comparator modules - Programmable references with 32 voltage points

MCH:PIC32MX695F512L-80I/PF

PIC32MX695F512L-80I/PF
