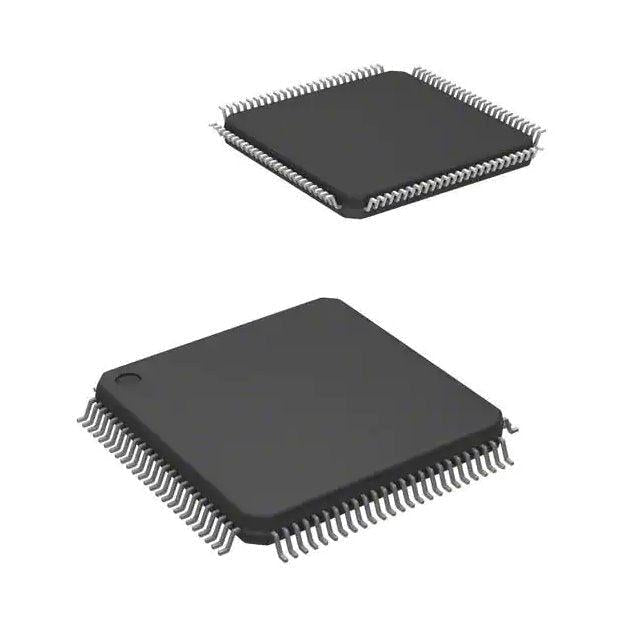

Microchip Technology 8-bit Microcontrollers Part #PIC17C756A-33I/PT

Features:

• Only 58 single word instructions to learn
• All single cycle instructions (121 ns), except for program branches and table reads/writes which are two-cycle
• Operating speed: - DC - 33 MHz clock input - DC - 121 ns instruction cycle
• 8 x 8 Single-Cycle Hardware Multiplier
• Interrupt capability
• 16 level deep hardware stack
• Direct, indirect, and relative addressing modes
• Internal/external program memory execution, capable of addressing 64 K x 16 program memory space

Peripheral Features:

• Up to 66 I/O pins with individual direction control
• 10-bit, multi-channel Analog-to-Digital converter
• High current sink/source for direct LED drive
• Four capture input pins - Captures are 16-bit, max resolution 121 ns
• Three PWM outputs (resolution is 1 to 10-bits)
• TMR0: 16-bit timer/counter with 8-bit programmable prescaler
• TMR1: 8-bit timer/counter
• TMR2: 8-bit timer/counter
• TMR3: 16-bit timer/counter
• Two Universal Synchronous Asynchronous Receiver Transmitters (USART/SCI) with independent baud rate generators

Special Microcontroller Features:

• Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Brown-out Reset
• Code protection
• Power saving SLEEP mode
• Selectable oscillator options

CMOS Technology:

• Low power, high speed CMOS EPROM technology
• Fully static design
• Wide operating voltage range (3.0V to 5.5V)
• Commercial and Industrial temperature ranges
• Low power consumption
• < 5 mA @ 5V, 4 MHz
• 100 µA typical @ 4.5V, 32 kHz
• < 1 µA typical standby current @ 5V
