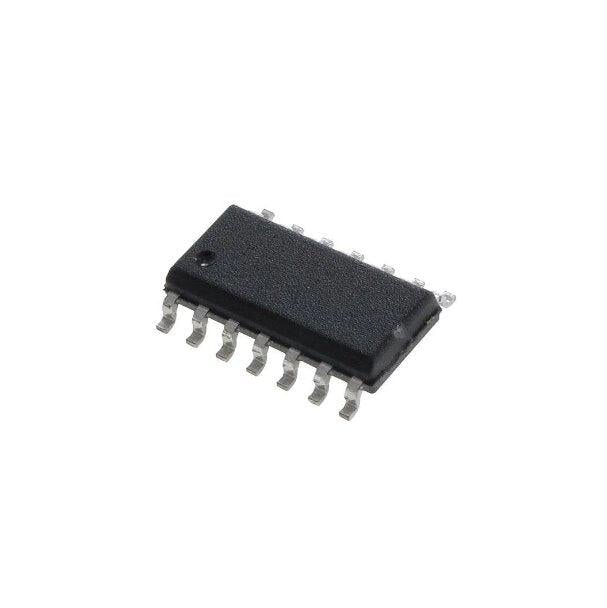

Microchip Technology IC Amplifiers Part #MCP6034T-E/SL

The Microchip Technology Inc. MCP6034T-E/SL family of operational amplifiers (op amps) operates with a single-supply voltage as low as 1.8V, while drawing ultra-low quiescent current per amplifier (0.9 µA, typical). This family also has low input offset voltage (150 µV, maximum) and rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6031/2/3/4 family is unity gain stable and has a gain bandwidth product of 10 kHz (typical). These specifications make these op amps appropriate for low-frequency applications, such as battery current monitoring and sensor conditioning. The MCP6031/2/3/4 family is offered in single (MCP6031), single with power-saving Chip Select (CS) input (MCP6033), dual (MCP6032) and quad (MCP6034) configurations. The MCP6031/2/3/4 family is designed with Microchip’s advanced CMOS process. All devices are available in the extended temperature range, with a power supply range of 1.8V to 5.5V.

Features

• Rail-to-Rail Input and Output
• Low Offset Voltage:150 µV (maximum)
• Ultra-Low Quiescent Current: 0.9 µA (typical)
• Wide Power Supply Voltage: 1.8V to 5.5V
• Gain Bandwidth Product: 10 kHz (typical)
• Unity Gain Stable
• Chip Select (CS) capability: MCP6033
• Extended Temperature Range: - -40°C to +125°C
• No Phase Reversal

Applications

• Toll Booth Tags
• Wearable Products
• Battery Current Monitoring
• Sensor Conditioning
• Battery Powered

MCH:MCP6034T-E/SL

MCP6034T-E/SL
