MICROCHIP TECHNOLOGY INC.

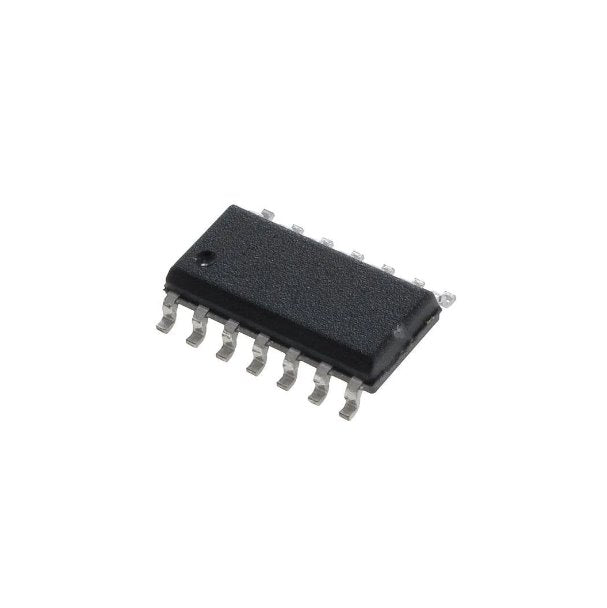

Microchip Technology IC Amplifiers Part #MCP6409T-H/SL | IC | DEX

Microchip Technology IC Amplifiers Part #MCP6409T-H/SL | IC | DEX

Regular price $0.91 USD
Regular price Sale price $0.91 USD
Sale Sold out
Shipping calculated at checkout.

Microchip Technology IC Amplifiers Part #MCP6409T-H/SL

The Microchip Technology Inc. MCP6401/1R/1U/2/4/6/7/9 family of operational amplifiers (op amps) has low quiescent current (45 µA, typical) and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 1 MHz (typical). These devices operate with a power supply voltage of 1.8V to 6.0V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6401/1R/1U/2/4/6/7/9 family is designed with Microchip’s advanced CMOS process and offered in single, dual and quad packages. The devices are available in two extended temperature ranges (E temp and H temp) with different package types, which makes them well-suited for automotive and industrial applications.



Features

  • Low Quiescent Current: 600 nA/amplifier (typical)
  • Gain Bandwidth Product: 100 kHz (typical)
  • Stable for gains of 10 V/V or higher
  • Rail-to-Rail Input/Output
  • Wide Supply Voltage Range: 1.4V to 6.0V
  • Available in Single, Dual, and Quad
  • Chip Select (CS) with MCP6143
  • Available in 5-lead and 6-lead SOT-23 Packages
  • Temperature Ranges: - Industrial: -40°C to +85°C - Extended: -40°C to +125°C



Applications

  • Toll Booth Tags
  • Wearable Products
  • Temperature Measurement
  • Battery Powered



MCH:MCP6409T-H/SL

MCP6409T-H/SL
