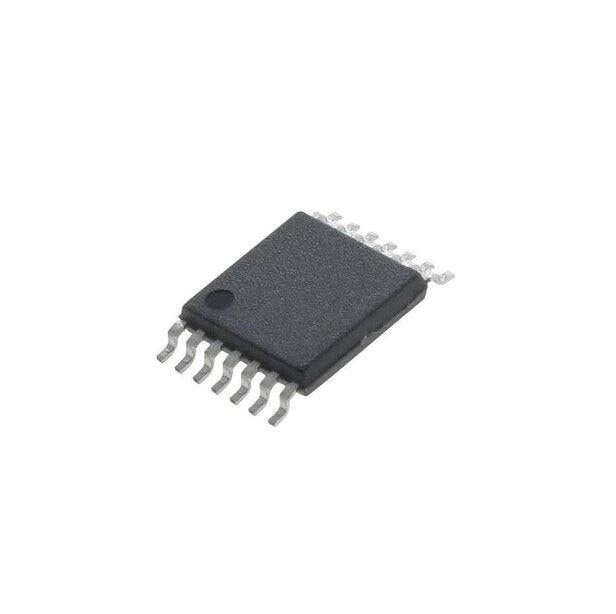

Microchip Technology IC Amplifiers Part #MCP6H74T-E/ST

Microchip’s MCP6H71/2/4 family of operational amplifiers (op amps) has a wide supply voltage range of 3.5V to 12V and rail-to-rail output operation. This family is unity gain stable and has a gain bandwidth product of 2.7 MHz (typical). These devices operate with a single-supply voltage as high as 12V, while only drawing 480 µA/amplifier (typical) of quiescent current. The MCP6H71/2/4 family is offered in single (MCP6H71), dual (MCP6H72) and quad (MCP6H74) configurations. All devices are fully specified in extended temperature range from -40°C to +125°C.



  • Input Offset Voltage: ±1 mV (typical)
  • Quiescent Current: 480 µA (typical)
  • Common Mode Rejection Ratio: 103 dB (typical)
  • Power Supply Rejection Ratio: 105 dB (typical)
  • Rail-to-Rail Output
  • Supply Voltage Range:
    • Single-Supply Operation: 3.5V to 12V
    • Dual-Supply Operation: ±1.75V to ±6V
  • Gain Bandwidth Product: 2.7 MHz (typical)
  • Slew Rate: 2 V/µs (typical)
  • Unity Gain Stable
  • Extended Temperature Range: -40°C to +125°C
  • No Phase Reversal



  • Automotive Power Electronics
  • Industrial Control Equipment
  • Battery Powered Systems
  • Sensor Conditioning
