MICROCHIP TECHNOLOGY INC.

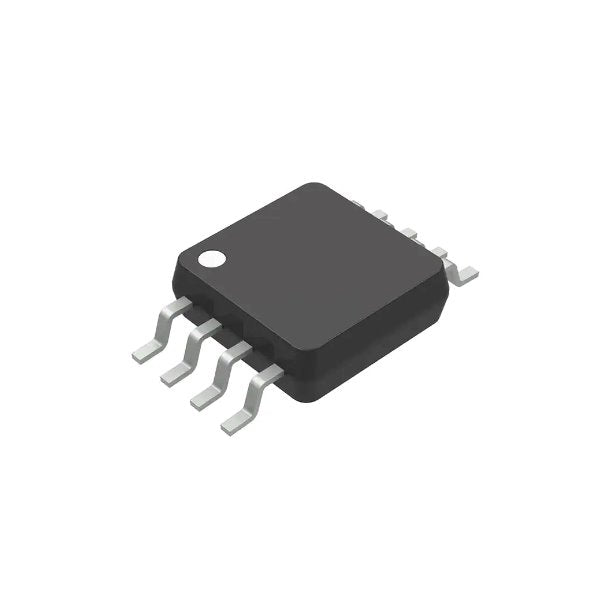

Microchip Technology IC Opamp Amplifier Part #MCP6054T-E/SL | IC | DEX

Microchip Technology IC Opamp Amplifier Part #MCP6054T-E/SL | IC | DEX

Regular price $1.79 USD
Regular price Sale price $1.79 USD
Sale Sold out
Shipping calculated at checkout.

Microchip Technology IC Opamp Amplifier Part #MCP6054T-E/SL

The MCP6021, MCP6021R, MCP6022, MCP6023 and MCP6024 from Microchip Technology Inc. are rail-to-rail input and output operational amplifiers with high performance. Key specifications include: wide bandwidth (10 MHz), low noise (8.7 nV/Hz), low input offset voltage and low distortion (0.00053% THD+N). The MCP6023 also offers a Chip Select pin (CS) that gives power savings when the part is not in use. The single MCP6021 and MCP6021R are available in SOT-23-5 packages. The single MCP6021, single MCP6023 and dual MCP6022 are available in 8-lead PDIP, SOIC and TSSOP packages. The Extended Temperature single MCP6021 is available in 8-lead MSOP. The quad MCP6024 is offered in 14-lead PDIP, SOIC and TSSOP packages. The MCP6021/1R/2/3/4 family is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V

Features

  • Rail-to-Rail Input/Output
  • Wide Bandwidth: 10 MHz (typical)
  • Low Noise: 8.7 nV/Hz at 10 kHz (typical)
  • Low Offset Voltage:
    • Industrial Temperature: ±500 µV (max.)
    • Extended Temperature: ±250 µV (max.)
  • Mid-Supply VREF: MCP6021 and MCP6023
  • Low Supply Current: 1 mA (typical)
  • Total Harmonic Distortion:
    • 0.00053% (typical, G = 1 V/V)
  • Unity Gain Stable
  • Power Supply Range: 2.5V to 5.5V
  • Temperature Range:
    • Industrial: -40°C to +85°C
    • Extended: -40°C to +125°C

Applications

  • Automotive
  • Multi-Pole Active Filters
  • Audio Processing
  • DAC Buffer
  • Test Equipment
  • Medical Instrumentation



MCH:MCP6054T-E/SL

MCP6054T-E/SL
