MICROCHIP TECHNOLOGY INC.

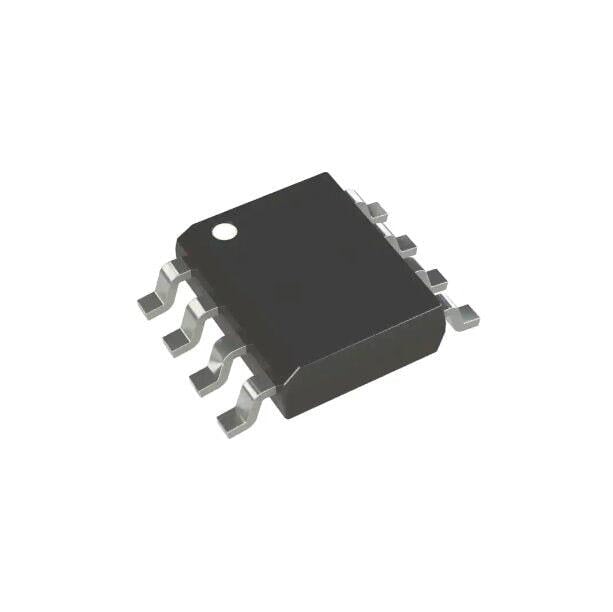

Microchip Technology General Purpose Amplifier Part #MCP6144T-I/ST | IC | DEX

Microchip Technology General Purpose Amplifier Part #MCP6144T-I/ST | IC | DEX

Regular price $1.44 USD
Regular price Sale price $1.44 USD
Sale Sold out
Shipping calculated at checkout.

Microchip Technology General Purpose Amplifier Part #MCP6144T-I/ST

The MCP6141/2/3/4 family of non-unity gain stable operational amplifiers (op amps) from Microchip Technology Inc. operate with a single supply voltage as low as 1.4V, while drawing less than 1 µA (maximum) of quiescent current per amplifier. These devices are also designed to support rail-to-rail input and output operation. This combination of features supports battery-powered and portable applications. The MCP6141/2/3/4 amplifiers have a gain bandwidth product of 100 kHz (typical) and are stable for gains of 10 V/V or higher. These specifications make these op amps appropriate for battery powered applications where a higher frequency response from the amplifier is required.

Features

  • Low Quiescent Current: 600 nA/amplifier (typical)
  • Gain Bandwidth Product: 100 kHz (typical)
  • Stable for gains of 10 V/V or higher
  • Rail-to-Rail Input/Output
  • Wide Supply Voltage Range: 1.4V to 6.0V
  • Available in Single, Dual, and Quad
  • Chip Select (CS) with MCP6143
  • Available in 5-lead and 6-lead SOT-23 Packages
  • Temperature Ranges:
  • Industrial: -40°C to +85°C
  • Extended: -40°C to +125°C

Applications

  • Toll Booth Tags
  • Wearable Products
  • Temperature Measurement
  • Battery Powered



MCH:MCP6144T-I/ST

MCP6144T-I/ST
