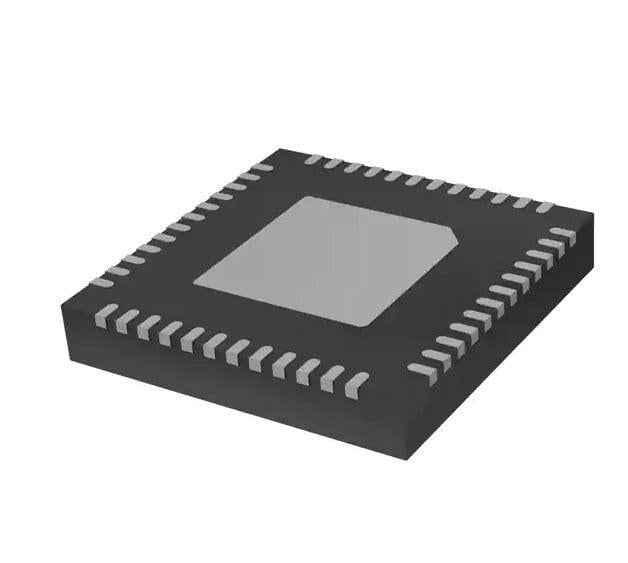

NXP Power Management IC I.MX7 PRE- MC32PF3000A3EPR2

The PF3000 is a power management integrated circuit (PMIC) designed specifically for use with the NXP i.MX 7 and i.MX 6SL/SX/UL application processors. With up to four buck converters, six linear regulators, RTC supply, and coin-cell charger, the PF3000 can provide power for a complete system, including applications processors, memory, and system peripherals. This device is powered by SMARTMOS technology

Features

• Four adjustable high efficiency buck regulators: 1.75 A, 1.5 A, 1.25 A, 1.0 A
• Selectable modes: PWM, PFM, APS
• 5.0 V, 600 mA boost regulator with PFM or auto mode
• Six adjustable general purpose linear regulators
• Input voltage range: 2.8 V to 4.5 V or 3.7 V to 5.5 V
• OTP (One Time Programmable) memory for device configuration
• Programmable start-up sequence and timing
• Selectable output voltage, frequency, soft start
• I2C control
• Coin cell charger and always ON RTC supply
• DDR reference voltage
• -40 °C to +125 °C operating junction temperature

Applications

• Tablets
• eReaders
• Wearables
• POS terminals
• Industrial control
• Medical monitoring
• Home automation
• Home security/energy management

NXP:MC32PF3000A3EPR2

MC32PF3000A3EPR2
