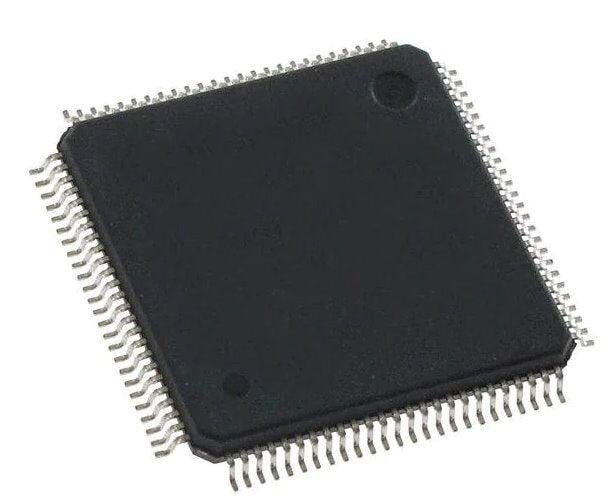

NXP Semiconductors 120 MHz ARM® Cortex®-M4-based Microcontroller with FPU, Part #: MK64FN1M0VLL12 | DEX
NXP Semiconductors 120 MHz ARM® Cortex®-M4-based Microcontroller with FPU, Part #: MK64FN1M0VLL12 | DEX
NXP Semiconductors 120 MHz ARM® Cortex®-M4-based Microcontroller with FPU, Part #: MK64FN1M0VLL12 | DEX is optimized for cost-sensitive applications requiring low-power, USB/Ethernet connectivity, and up to 256 KB of embedded SRAM.
Performance
• Up to 120 MHz ARM® Cortex®-M4 core with DSP instructions and floating point unit
Memories and memory interfaces
• Up to 1 MB program flash memory and 256 KB RAM • Upto 128 KB FlexNVM and 4 KB FlexRAM on devices with FlexMemory • FlexBus external bus interface
System peripherals
• Multiple low-power modes, low-leakage wake-up unit • Memory protection unit with multi-master protection • 16-channel DMA controller • External watchdog monitor and software watchdog
Security and integrity modules
• Hardware CRC module • Hardware random-number generator • Hardware encryption supporting DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms • 128-bit unique identification (ID) number per chip
Analog modules
• Two 16-bit SAR ADCs • Two 12-bit DACs • Three analog comparators (CMP) • Voltage reference
Communication Interfaces
• Ethernet controller with MII and RMII interface • USB full-/low-speed On-the-Go controller • Controller Area Network (CAN) module • Three SPI modules • Three I2C modules. Support for up to 1 Mbit/s • Six UART modules • Secure Digital Host Controller (SDHC) • I2S module
Timers
• Two 8-channel Flex-Timers (PWM/Motor control) • Two 2-channel FlexTimers (PWM/Quad decoder) • IEEE 1588 timers • 32-bit PITs and 16-bit low-power timers • Real-time clock • Programmable delay block
Clocks
• 3 to 32 MHz and 32 kHz crystal oscillator • PLL, FLL, and multiple internal oscillators • 48 MHz Internal Reference Clock (IRC48M)
Operating characteristics
• Voltage range: 1.71 to 3.6 V • Flash write voltage range: 1.71 to 3.6 V • Temperature range (ambient): –40 to 105°C
