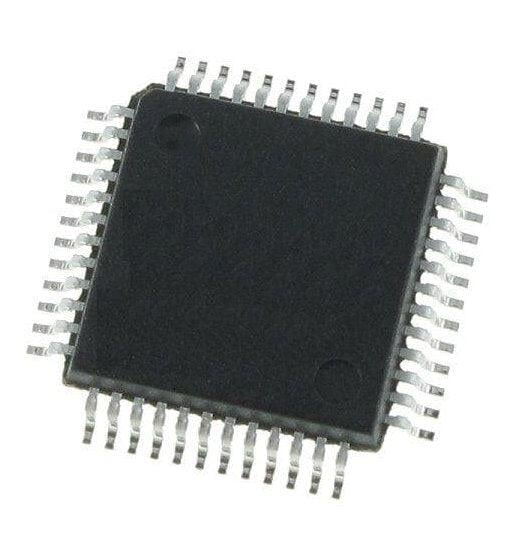

NXP Semiconductors 8-bit Microcontroller, Part #MC9S08DZ60AMLF | Microcontroller | DEX

NXP Semiconductors 8-bit Microcontroller, Part #MC9S08DZ60AMLF | Microcontroller | DEX

Regular price $195.00 USD
Regular price $195.00 USD Sale price $195.00 USD
Sale Sold out
Shipping calculated at checkout.

NXP Semiconductors 8-bit Microcontroller, Part #MC9S08DZ60AMLF | Microcontroller | DEX features: 8-Bit HCS08 Central Processor Unit (CPU) • 40-MHz HCS08 CPU (20-MHz bus) • HC08 instruction set with added BGND instruction • Support for up to 32 interrupt/reset sources On-Chip Memory • Flash read/program/erase over full operating voltage and temperature — MC9S08DZ60 = 60K — MC9S08DZ48 = 48K — MC9S08DZ32 = 32K — MC9S08DZ16 = 16K • Up to 2K EEPROM in-circuit programmable memory; 8-byte single-page or 4-byte dual-page erase sector; Program and Erase while executing Flash; Erase abort • Up to 4K random-access memory (RAM) Power-Saving Modes • Two very low power stop modes • Reduced power wait mode • Very low power real time interrupt for use in run, wait, and stop Clock Source Options • Oscillator (XOSC) — Loop-control Pierce oscillator; Crystal or ceramic resonator range of 31.25 kHz to 38.4 kHz or 1 MHz to 16 MHz • Multi-purpose Clock Generator (MCG) — PLL and FLL modes (FLL capable of 1.5% deviation using internal temperature compensation); Internal reference clock with trim adjustment (trimmed at factory, with trim value stored in flash); External reference with oscillator/resonator options System Protection • Watchdog computer operating properly (COP) reset with option to run from backup dedicated 1-kHz internal clock source or bus clock • Low-voltage detection with reset or interrupt; selectable trip points • Illegal opcode detection with reset • Illegal address detection with reset • Flash block protect • Loss-of-lock protection Development Support • Single-wire background debug interface • On-chip, in-circuit emulation (ICE) with real-time bus capture
