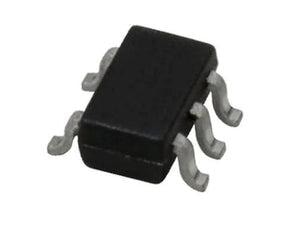

Onsemi EEPROM Digital Output Temperature Sensor with On-board SPD, Part #N34TS04 | EEPROM | DEX

Onsemi EEPROM Digital Output Temperature Sensor with On-board SPD, Part #N34TS04 | EEPROM | DEX is a combination Temperature Sensor (TS) and 4−Kb of Serial Presence Detect (SPD) EEPROM, which implements the JEDEC TSE2004av DDR4 specification and supports the Standard (100 kHz), Fast (400 kHz) and Fast Plus (1 MHz) I2C protocols. The TS measures temperature at least 10 times every second. Temperature readings can be retrieved by the host via the serial interface, and are compared to high, low and critical trigger limits stored into internal registers. Over or under limit conditions can be signaled on the open−drain EVENT pin. One of the two available 2−Kb SPD EEPROM banks (referred to as SPD pages in the TSE2004av specification) is activated for access at power−up. After power−up, banks can be switched via software command. Each of the four 1−Kb SPD EEPROM blocks can be Write Protected by software command.

Features: • JEDEC TSE2004av Compliant Temperature Sensor • DDR4 DIMM Compliant SPD EEPROM • Temperature Range: −20°C to +125°C • Supply Range: 1.7 V − 5.5 V (SPD EEPROM) and 2.2 V − 5.5 V (TS) • I2C / SMBus Interface • Schmitt Triggers and Noise Suppression Filters on SCL and SDA Inputs • 16−Byte Page Write Buffer • Low Power CMOS Technology • 2 x 3 x 0.75 mm TDFN Package and 2 x 3 x 0.5 mm UDFN Package • These Devices are Pb−Free and are RoHS Compliant

ONS:N34TS04

N34TS04
