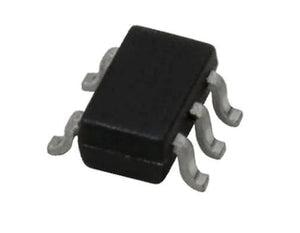

Onsemi Multi-Output Power Management IC (PMIC) for Safety Applications Part #NCV97400 | IC | DEX

Onsemi Multi-Output Power Management IC (PMIC) for Safety Applications Part #NCV97400 | IC | DEX

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.

The NCV97400 is a 4-output monolithic regulator consisting of 3 buck regulators and 1 boost regulator with supervisory functions including window voltage monitoring on all outputs and a window watchdog timer. This product is ideal for ADAS (Advanced Driver Assistance Systems) applications and utilizes an independent voltage reference and an adjustable independent oscillator to realize the supervisory features. A 40 V non-synchronous buck regulator converts the battery supply voltage to a 3.3 V output, and delivers up to 3 A (peak). This output rail may be used as the input voltage for the 2 synchronous secondary buck converters and the non-synchronous secondary boost converter. Each secondary buck is adjustable and can be set from 2.5 V to 0.8 V with 2 A peak current limit and can be supplied by up to 3.6 V from a separate supply. The secondary boost output voltage is fixed and is intended to supply a low current 5.0 V rail for In-Vehicle Networking circuits (IVN). All internal MOSFETs are N-channel devices, and bootstrap circuits are used to drive high side MOSFETs. All 4 SMPS outputs use peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the low-voltage gate drivers. The NCV97400 is a functional safety solution that reduces the time required to develop safety systems that comply with the International Standards Organization (ISO) 26262. The device includes a range of integrated safety features such as dedicated feedback references, output voltage monitoring, and window watchdog timer.



Features

  • 3 Enabled Buck Converter
  • 1 Boost Converter for IVN Supply
  • Wide Input of 4.1 to 40 V with Undervoltage Lockout (UVLO)
  • Fixed Frequency Operation at 2 MHz
  • Window Watchdog with Independent References
  • Cycle-by-cycle Current Limit Protection
  • External Frequency Synchronization
  • Pseudo-random Spread Spectrum for Improved EMI
  • QFN Package with Wettable Flanks (pin edge plating)
  • NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAP Capable



Applications

  • Safety Applications
  • ADAS (Advanced Driver Assistance Systems)
  • Body Electronics
  • Telematics



End Products

  • Automotive



ONS:NCV97400

NCV97400
