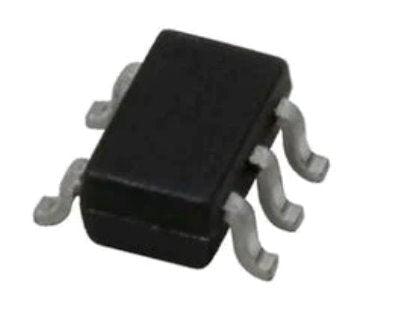

Onsemi Power Rectifier Part #MBR1H100SF-D | Rectifier | DEX

Onsemi Power Rectifier Part #MBR1H100SF-D | Rectifier | DEX

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out
Shipping calculated at checkout.

This device uses the Schottky Barrier principle with a large area metal−to−silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are AC−DC and DC−DC converters, reverse battery protection, and “Oring” of multiple supply voltages and any other application where performance and size are critical.


Features

  • • Guarding for Stress Protection
  • • Low Forward Voltage
  • • 175°C Operating Junction Temperature
  • • Epoxy Meets UL 94 V−0
  • • Package Designed for Optimal Automated Board Assembly
  • • ESD Ratings: Machine Model, C Human Body Model, 3B
  • • NRVB Prefix for Automotive and Other Applications Requiring
  • Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
  • • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant


Mechanical Characteristics

  • • Reel Options: MBR1H100SFT3G = 10,000 per 13 in reel/8 mm tape
  • • Device Marking: L1H
  • • Polarity Designator: Cathode Band
  • • Weight: 11.7 mg (approximately)
  • • Case: Epoxy, Molded
  • • Lead Finish: 100% Matte Sn (Tin)
  • • Lead and Mounting Surface Temperature for Soldering Purposes:
  • 260°C Max. for 10 Seconds
  • • Device Meets MSL 1 Requirement


ONS:MBR1H100SF-D

MBR1H100SF-D
