ON SEMICONDUCTOR

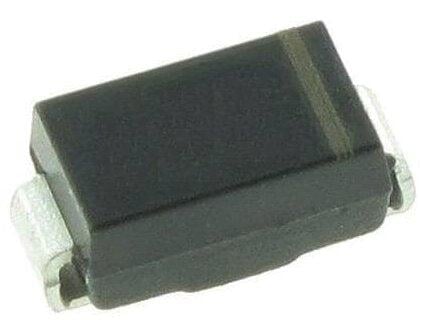

Onsemi Schottky Power Rectifier, Surface Mount, 3.0 A, 100 V, SMC Package, Part #: MBRS3100T3G | DEX

Onsemi Schottky Power Rectifier, Surface Mount, 3.0 A, 100 V, SMC Package, Part #: MBRS3100T3G | DEX

Regular price $35.71 USD
Regular price $35.71 USD Sale price $35.71 USD
Sale Sold out
Shipping calculated at checkout.

Onsemi Schottky Power Rectifier, Surface Mount, 3.0 A, 100 V, SMC Package, Part #: MBRS3100T3G | DEX employs the Schottky Barrier principle in a large area metal−to−silicon power diode. State−of−the−art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.

Features:

• Small Compact Surface Mountable Package with J−Bend Leads • Rectangular Package for Automated Handling • Highly Stable Oxide Passivated Junction • Excellent Ability to Withstand Reverse Avalanche Energy Transients • Guard−Ring for Stress Protection • NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable* • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Mechanical Characteristics:

• Case: Epoxy, Molded • Weight: 217 mg (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds • Polarity: Polarity Band on Plastic Body Indicates Cathode Lead • ESD Ratings: ♦ Machine Model = C ♦ Human Body Model = 3B



ONS:MBRS3100T3G

MBRS3100T3G
