FAIRCHILD

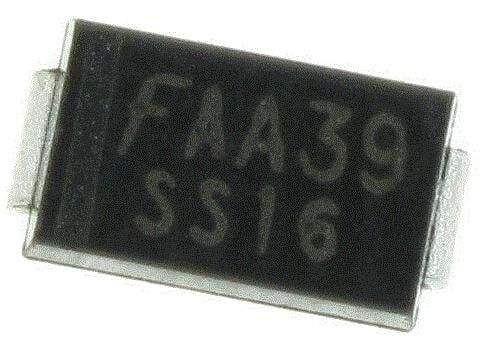

Onsemi Surface Mount Schottky Power Rectifier, Part #SS16 | Rectifier | DEX

Onsemi Surface Mount Schottky Power Rectifier, Part #SS16 | Rectifier | DEX

Regular price $0.15 USD
Regular price $0.15 USD Sale price $0.15 USD
Sale Sold out
Shipping calculated at checkout.

Onsemi Surface Mount Schottky Power Rectifier, Part #SS16 | Rectifier | DEX features: • Small Compact Surface Mountable Package with J−Bent Leads • Rectangular Package for Automated Handling • Highly Stable Oxide Passivated Junction • Very Low Forward Voltage Drop • Guardring for Stress Protection • SBRA8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable* • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Mechanical Characteristics: • Case: Epoxy, Molded, Epoxy Meets UL 94 V−0 • Weight: 70 mg (approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds • Shipped in 12 mm tape, 5000 units per 13 inch reel • Polarity: Cathode Lead Indicated by Polarity Band • ESD Ratings: ♦ Machine Model = C ♦ Human Body Model = 3B • Device Meets MSL 1 Requirements



FRC:SS16

SS16
