Onsemi TinyLogic UHS D-Type, Part #NC7SZ74K8X | CMOS | DEX

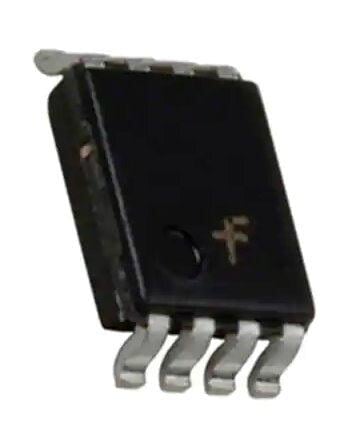

Onsemi TinyLogic UHS D-Type, Part #NC7SZ74K8X | CMOS | DEX is a single, D−type, CMOS flip−flop with preset and clear from onsemi ultra high−speed series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive, while maintaining low static power dissipation over a very broad VCC operating range of 1.65 V to 5.5 V VCC. The inputs and outputs are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage. The signal level applied to the D input is transferred to the Q output during the positive−going transition of the CLK pulse.

Features: • Ultra−High Speed: tPD 2.6 ns (Typical) into 50 pF at 5 V VCC • High Output Drive: ±24 mA at 3 V VCC • Broad VCC Operating Range: 1.65 V to 5.5 V • Power Down High−Impedance Inputs/Outputs • Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation • Proprietary Noise/EMI Reduction Circuitry

FRC:NC7SZ74K8X

NC7SZ74K8X
